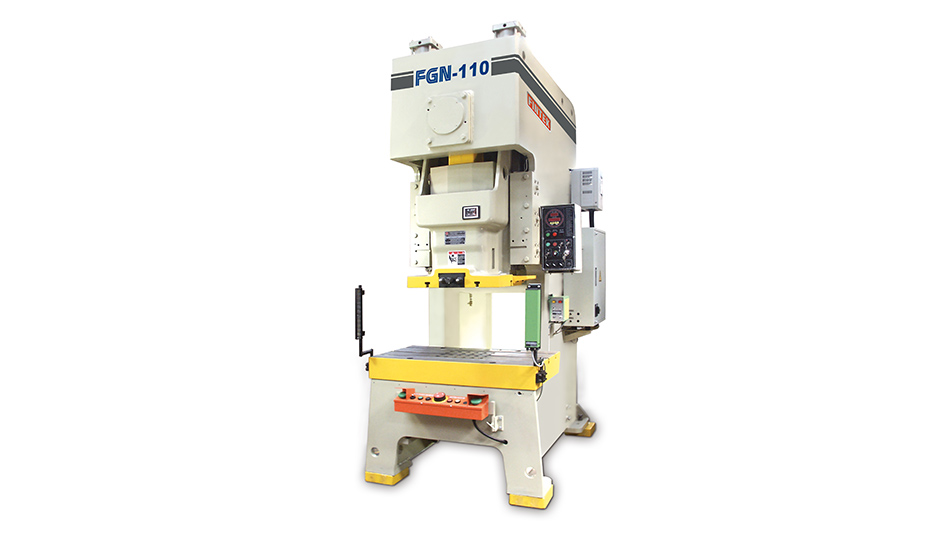

FGN

Super Heavy Duty Precision Press

FGN

Super Heavy Duty Precision Press

Home  /  Machines  /  Power Press /  FGN

Features

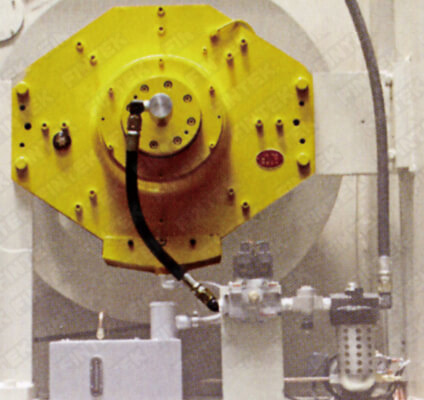

Wet clutch & brake

Wet clutch & brake

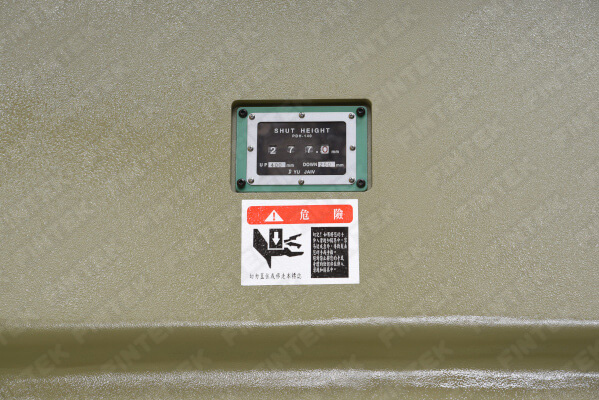

Die height indicator

Die height indicator

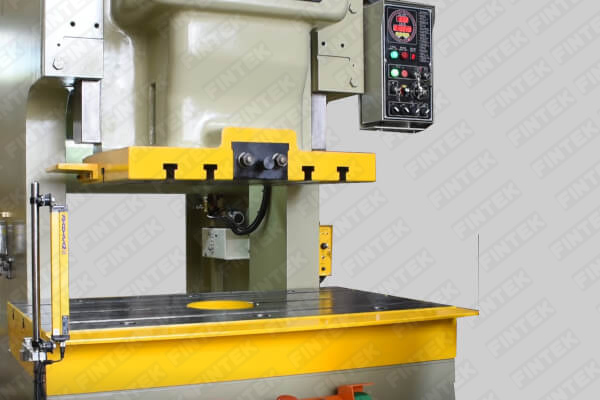

Slide & Bolster

Slide & Bolster

SPECIFICATION

FGN - ​​Super Heavy Duty Precision Press

Specification / Model FGN-25 FGN-45 FGN-60 FGN-80
Pressure Capacity (Tons) 25 45 60 80
Length of Strokes (mm) - Standard / High Speed 75 /50 90 / 60 120 / 80 150 / 100
Strokes per minute - ​ Fixed Speed 100 / 120 80 / 100 70 / 90 60 / 80
Strokes per minute - ​ Variable Speed 100-110 / 100-140 80-95 / 80-110 70-85 / 70-110 60-75 / 60-90
Rated Tonnage Point ​(mm)  3.2 3.2 3.2 4
Die Height ​(mm)  - Standard / High Speed 230 / 240 280 / 295 300 / 320 330 / 355
Adjustment of Slide (mm) 60 60 70 80
Area of Slide (mm) 350x250 400x300 480x350 530x400
Area of Bolster (mm) 700x360 800x440 870x500 970x500
Specification / Model FGN-110 FGN-160 FGN-200 FGN-260
Pressure Capacity (Tons) 110 160 200 260
Length of Strokes (mm) - Standard / High Speed 170 / 100 200 / 130 200 / 150 250 / 200
Strokes per minute - ​ Fixed Speed 50 / 70 40 / 60 35 / 50 30 / 45
Strokes per minute - ​ Variable Speed 50-65 / 50-75 40-55 / 40-65 30-45 / 35-65 30-40 / 30-50
Rated Tonnage Point ​(mm) 4 6 6 7
Die Height ​(mm)  - Standard / High Speed 350 / 385 400 / 435 450 / 475 450 / 475
Adjustment of Slide (mm) 90 100 125 125
Area of Slide (mm) 650x450 700x500 860x650 920x700
Area of Bolster (mm) 1160x600 1350x750 1400x840 1500x860

FGN - ​Super Heavy Duty Precision Press

For Precision Punching Operation
No Angular Elevation Problem

Extremely sturdy steel frame construction without the open-back disadvantage.
The carefully designed structure also prevents the angular elevation phenomena while extending the service life of the dies.

Employ eco-friendly and low-noise wet clutch and brake system.

Available to equip with automatic feeder to greatly upgrade production efficiency and ensure product quality and consistency

FGN - ​Super Heavy Duty Precision Press

  • Wet Clutch & Brake​ / Combined Clutch
  • Hydraulic overload protector.
  • Electrical grease lubrication system. (FGN-80 - FGN-260)
  • Slide & die balancer.
  • Electrical slide adjustment device. (FGN-80 - FGN-260)
  • Die height indicator.

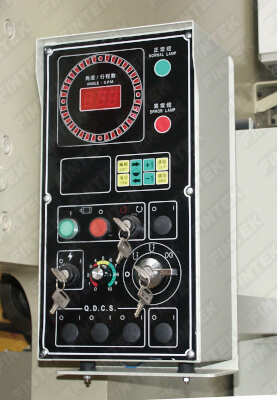

  • Crank angle indicator.
  • Preset Counter
  • Rubber mounts
  • Maintenance tool

FGN - ​Super Heavy Duty Precision Press

  • Inverter / Variable speed motor.

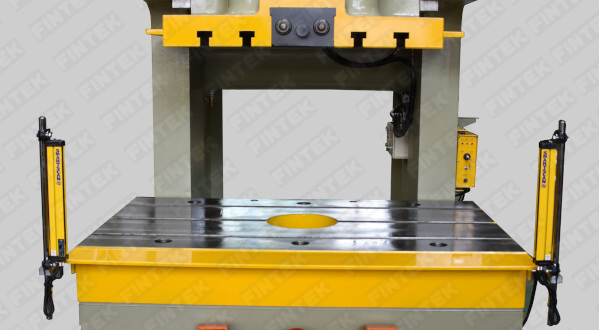

  • Photoelectric safety device.
  • Pneumatic die cushion.
  • Slide knockout device.
  • Foot pedal switch
  • Power take off shaft.
  • Quick die change system. (Q.D.C.)
  • Load monitor.
  • Robot of automatism.
  • Automatic transfer device.
