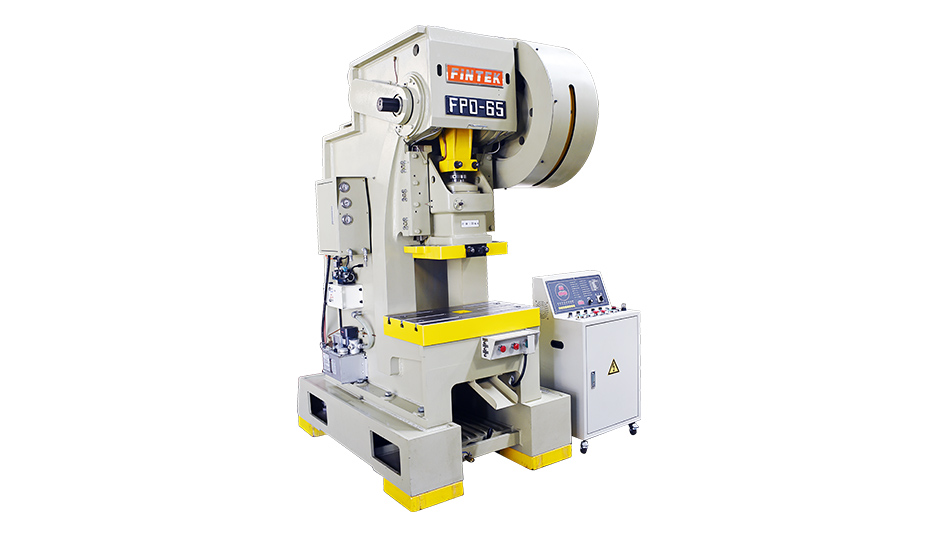

FPD

Open Back Precision Power Press

FPD

Open Back Precision Power Press

Home  /  Machines  /  Power Press /  FPD

Features

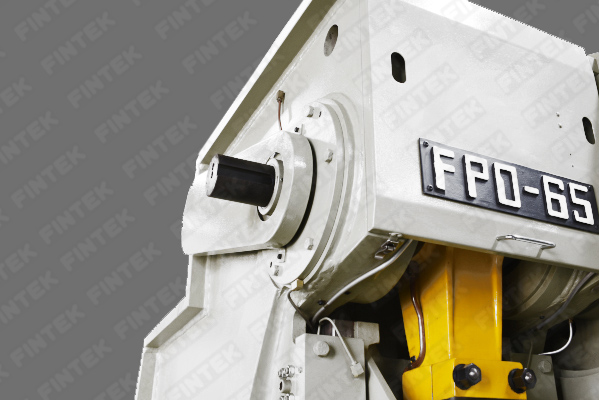

Power take-off shaft

For install automatic power feeder

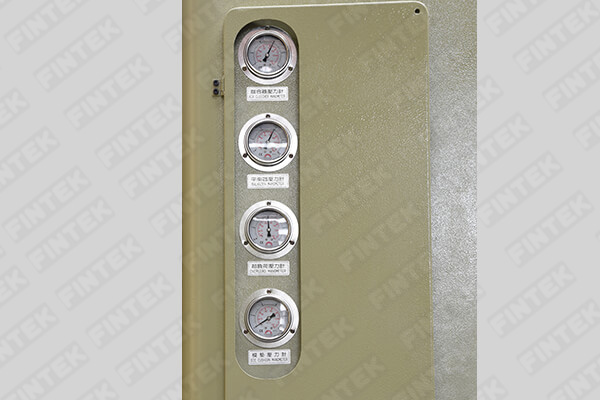

Air Spring Balance Device

- Maintenance-free
- Stable balance performance

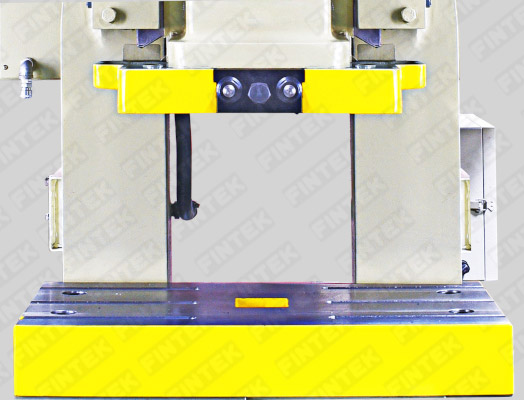

Slide & Bolster

Slide & Bolster

SPECIFICATION

FPD - High Speed Precision Power Press

Specification / Model FPD - 65
Pressure Capacity (Tons) 65
Length of Strokes (mm) 30
Strokes per minute - ​ Variable Speed 150 - 350
Rated Tonnage Point ​(mm)  1.5
Die Height ​(mm) 330
Adjustment of Slide (mm) 50
Area of Slide (mm) 460x320
Area of Bolster (mm) 800x450

FPD - High Speed Precision Power Press

High-speed Production Press
Precision Punching Capability

The slide is designed with long guides combined with air-balance device.
This permits stable and accurate motions, and making the machine suitable for progressive dies.

Equipped with micro-computer control.
Automatic positioning compensation for stop angle.

Accuracy meets CNS special class standard.

FPD - High Speed Precision Power Press

  • Automatic lubrication system.
  • Knockout device of slide.
  • Counter balance.
  • Crank angle indicator.
  • Handle slide adjusting device.
  • Power take off shaft.

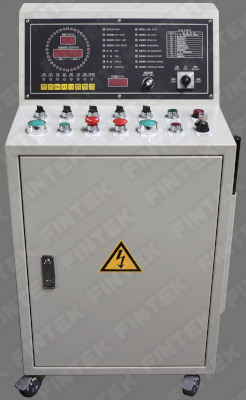

  • Separate type electrical control panel.
  • Magnetic stroke counter.
  • Air ejector protect.
  • Maintenance tool.

FPD - High Speed Precision Power Press

  • Quick die change system. (Q.D.C.)
  • Against vibration protect.
  • Dies of rated tonnage point checkout protect.
  • Die light.
  • Die height indicator.
  • Bottom jamming release device.
