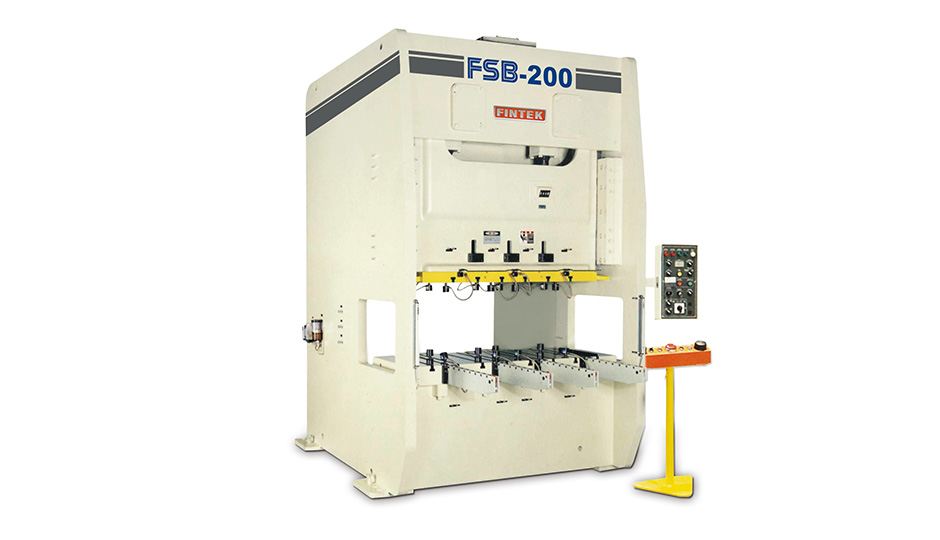

Straight Side Double Crank Precision Press
Home / Machines / Power Press / FSB
| Specification / Model | FSB - 110 | FSB - 160 | FSB - 200 | FSB - 250 | FSB - 300 |
|---|---|---|---|---|---|
| Pressure Capacity (Tons) | 110 | 160 | 200 | 250 | 300 |
| Length of Strokes (mm) | 150 | 200 | 250 | 250 | 300 |
| Strokes per minute - Fixed Speed (S.P.M) | 45 | 40 | 35 | 30 | 25 |
| Strokes per minute - Vairable Speed (S.P.M) | 35-60 | 30-50 | 25-45 | 20-40 | 20-35 |
| Rated Tonnage Point (mm) | 5 | 6 | 7 | 7 | 7 |
| Die Height (mm) | 400 | 450 | 500 | 550 | 550 |
| Adjustment of Slide (mm) | 100 | 100 | 120 | 120 | 120 |
| Area of Slide (mm) | 1500x500 | 1630x580 | 1850x650 | 2000x800 | 2000x800 |
| Area of Bolster (mm) | 1700x660 | 1800x760 | 2200x850 | 2500x900 | 2500x900 |
Build for High Production and Continuous Operation
Extremely sturdy steel frame construction
with long slideways provide stable and
accurate movement without the open-back disadvantage.
Employ eco-friendly and low-noise wet
clutch and brake system.
Extra large bottom area of ram permits
the use of various automated devices
and progressive dies.
