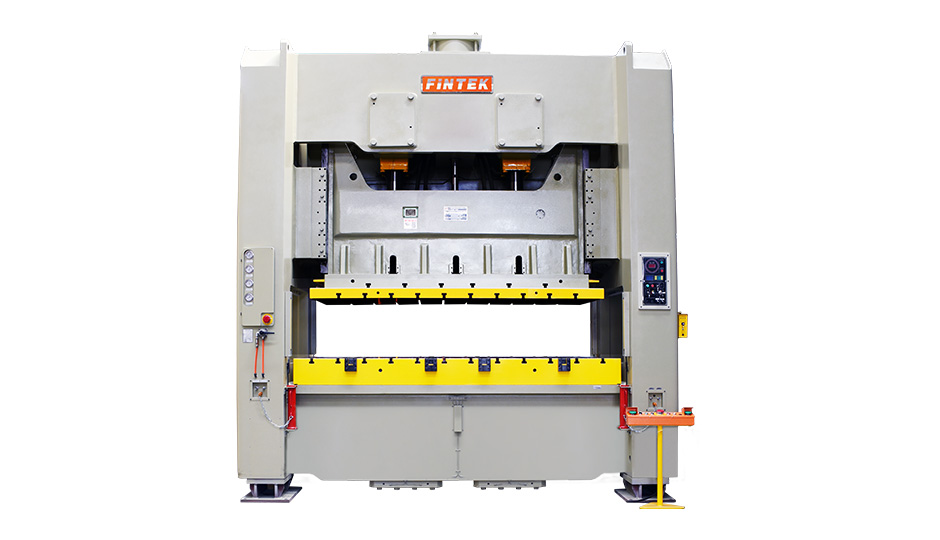

FSG

Straight Side Double Crank Precision Press

FSG

Straight Side Double Crank Precision Press

Home  /  Machines  /  Power Press /  FSG

Features

Wet clutch & brake

Wet clutch & brake

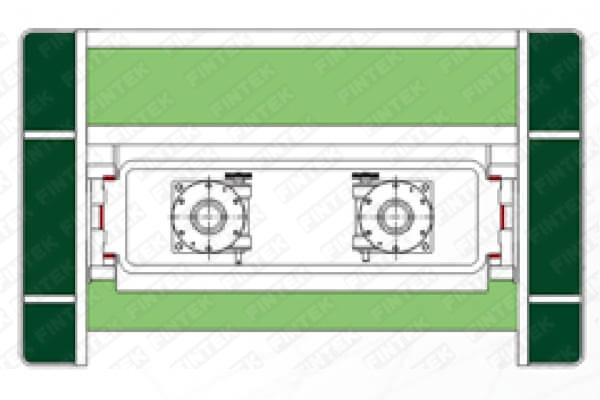

6-surface slideways

Extra wide & extra long 6-surface slideways.
Exhibit maximum stability of punched products.
Enable the machine to suit machining of progressive dies

Die height indicator

Die height indicator

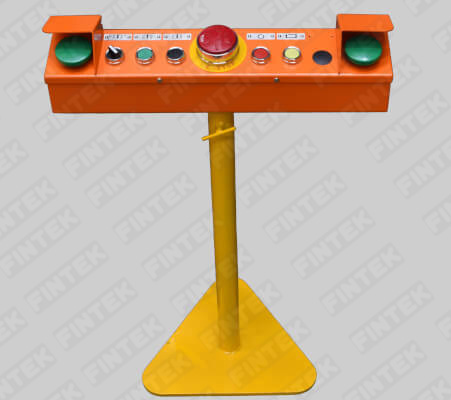

Portable Control Panel

Portable Control Panel

Hydraulic Pressure Gauge

Hydraulic Pressure Gauge

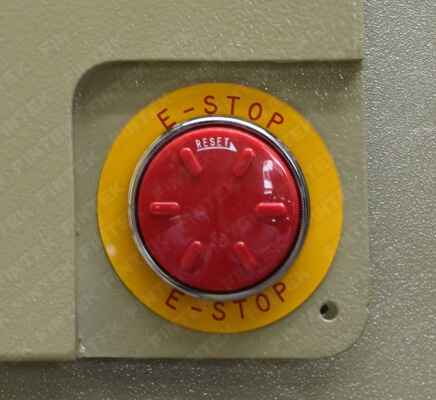

Emergency stop buttons

Emergency stop buttons

SPECIFICATION

FSG - ​​Straight Side Double Crank Precision Press

Specification / Model FSG - 160 FSG - 200 FSG - 250
Pressure Capacity (Tons) 160 200 250
Length of Strokes (mm) - Standard / High Speed 200 / 130 250 / 150 250 / 170
Strokes per minute - ​ - Standard / High Speed 30-50 / 40-85 25-45 / 35-70 20-40 / 30-60
Rated Tonnage Point ​(mm)  - Standard / High Speed 6 / 3 7 / 3 7 / 3
Die Height ​(mm)  - Standard / High Speed 450 / 400 500 / 450 550 / 450
Adjustment of Slide (mm) 100 120 120

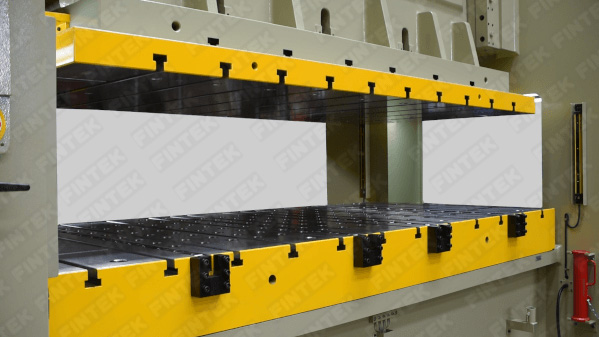

Area of Slide (mm) 1730 x 670 1950 x 750 2200 x 900
Area of Bolster (mm) 1800 x 840 2200 x 940 2500 x 1000
Specification / Model FSG - 300 FSG - 350 FSG - 400
Pressure Capacity (Tons) 300 350 400
Length of Strokes (mm) - Standard / High Speed 300 / 170 300 / 200 300 / 200
Strokes per minute - ​ - Standard / High Speed 20-35 / 30-50 18-35 / 25-45 15-30 / 20-40
Rated Tonnage Point ​(mm)  - Standard / High Speed 7 / 3 7 / 3 8 / 4
Die Height ​(mm)  - Standard / High Speed 550 / 450 550 / 500 600 / 550
Adjustment of Slide (mm) 120 150 150
Area of Slide (mm) 2250 x 900 2400 x 1000 2500 x 1100
Area of Bolster (mm) 2500 x 1000 2700 x 1200 2800 x 1400

FSG - Straight Side Doubel Crank Precision Press

Straight side frame construction in combination with 8-surface seideways to eliminate the open back problem and reduce the frame deformation to a minimum.
This makes the machine suitable for machining of progressive dies.

Employ eco-friendly and low-noise wet clutch and brake system.
High performance control system is operator friendly and safe in operation.

FSG - ​Straight Side Double Crank Precision Press

  • Wet Clutch & Brake
  • Hydraulic overload protector.
  • Electrical grease lubrication system.
  • Slide & die balancer.
  • Electrical slide adjustment device.
  • Die height indicator.
  • Crank angle indicator.
  • Preset Counter
  • Rubber mounts
  • Maintenance tool

FSG - ​Straight Side Double Crank Precision Press

  • Inverter / Variable speed motor.
  • Photoelectric safety device.
  • Pneumatic die cushion.
  • Slide knockout device.
  • Foot pedal switch
  • Power take off shaft.
  • Quick die change system. (Q.D.C.)
  • Load monitor.
  • Robot of automatism.
  • Automatic transfer device.
  • Flywheel brake device.
