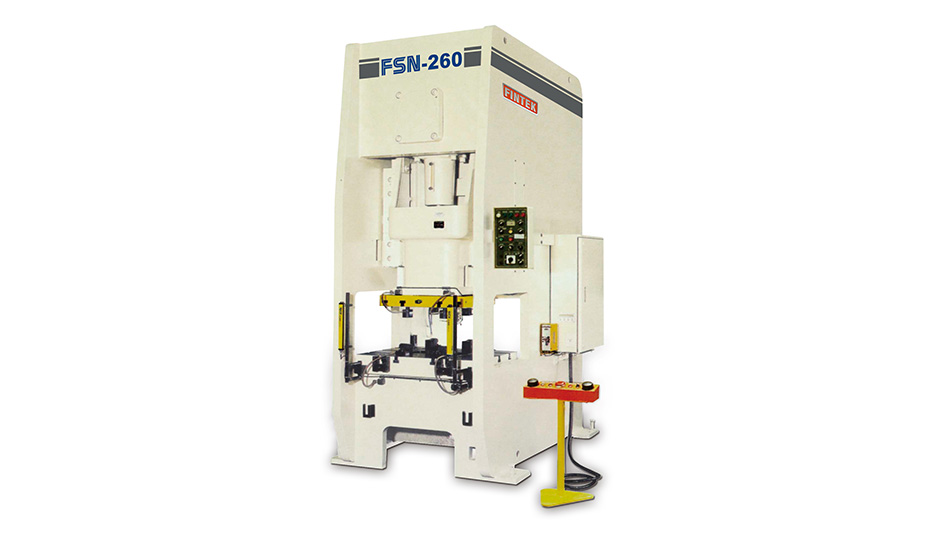

Straight Side Single Crank Precision Press
Home / Machines / Power Press / FSN
| Specification / Model | FSN-110 | FSN-160 | FSN-200 | FSN-260 |
|---|---|---|---|---|
| Pressure Capacity (Tons) | 110 | 160 | 200 | 260 |
| Length of Strokes (mm) - Standard / High Speed | 170 / 100 | 200 / 130 | 200 / 150 | 250 / 200 |
| Strokes per minute - Fixed Speed | 50 / 70 | 40 / 60 | 35 / 50 | 30 / 45 |
| Strokes per minute - Variable Speed | 50-65 / 50-75 | 40-55 / 40-65 | 30-45 / 35-65 | 30-40 / 30-50 |
| Rated Tonnage Point (mm) - Standard / High Speed | 4 / 3.2 | 6 / 4 | 6 / 4 | 7 / 4 |
| Die Height (mm) - Standard / High Speed | 350 / 385 | 400 / 435 | 450 / 475 | 450 / 475 |
| Adjustment of Slide (mm) | 90 | 100 | 125 | 125 |
| Area of Slide (mm) | 650x450 | 700x500 | 800x650 | 920x700 |
| Area of Bolster (mm) | 870x600 | 1000x750 | 1150x840 | 1250x860 |
For Precision Punching Operation
No Angular Elevation Problem
Extremely sturdy steel frame construction without the open-back disadvantage.
The carefully designed structure also prevents the angular elevation phenomena while extending the service life of the dies.
Employ eco-friendly and low-noise wet
clutch and brake system.
Available to equip with automatic feeder to greatly upgrade production efficiency and ensure product quality and consistency
