V series

Manual Box & Pan Brake / Manual Straight Brake

SPEC

V

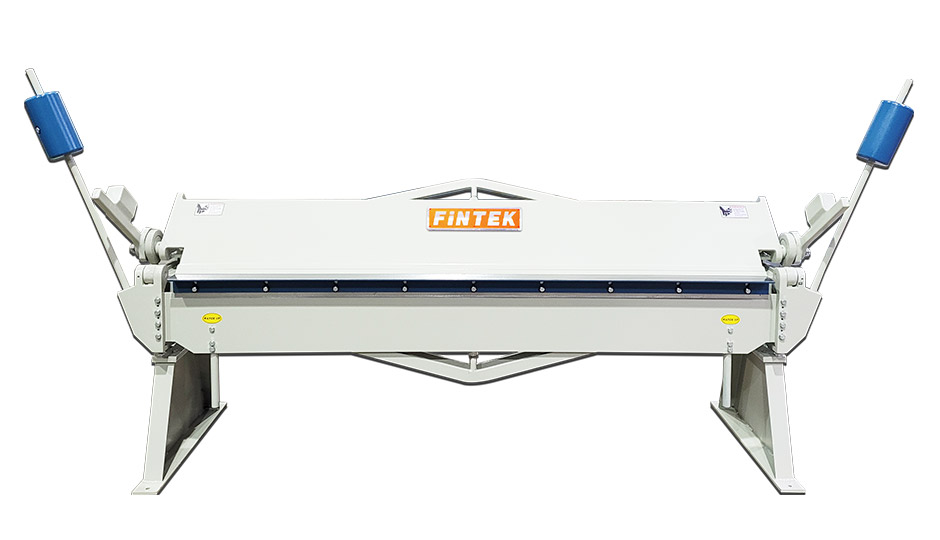

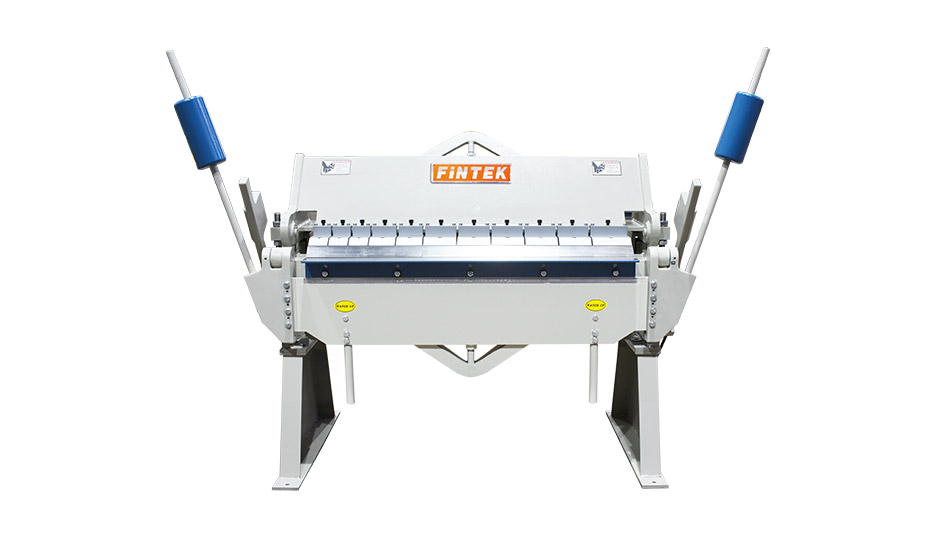

Manual Box & Pan / Straight Brake

Home / Machines / Folding machine / V-series

performance

0.8 - 2.5 mm

Bending Thickness

1220 - 4000 mm

Bending Length

0-135°

Bending Degree

Features

◀
▶

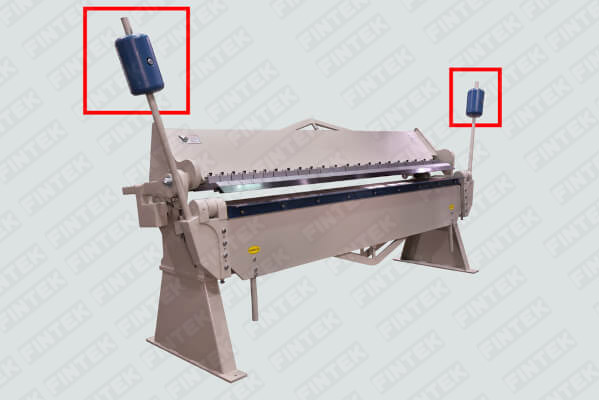

Counter Weight

All manual braker equipped the counter weight, save effort designed, easier operation

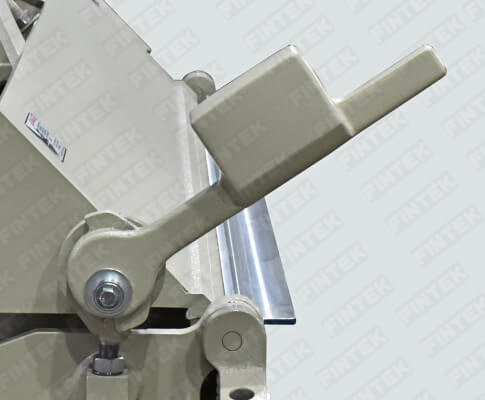

Clamping Handle

For clamping workpiece, must clamp both two sides

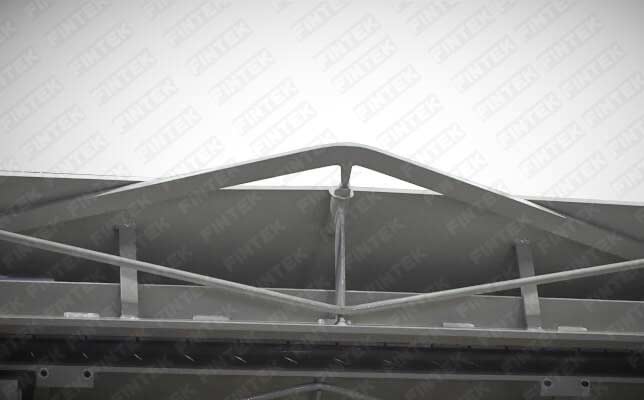

Beam Crowning Compensation

Top Beam and Bottom Beam crowning compensation by screws

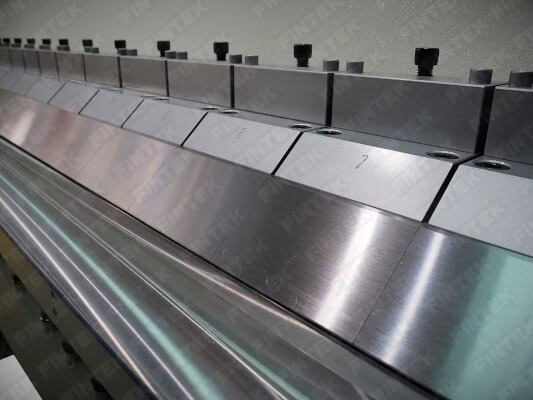

Segmented / Straight Type Clamping Tools

High-grade alloy steel blades
Multiple finger size (seg tool)
For box & pan bending (seg tool)
Easy replacement design (seg tool)
One piece tool (straight tool)

Angle Bar

Angle bar Two-position movable design (For reverse bending)

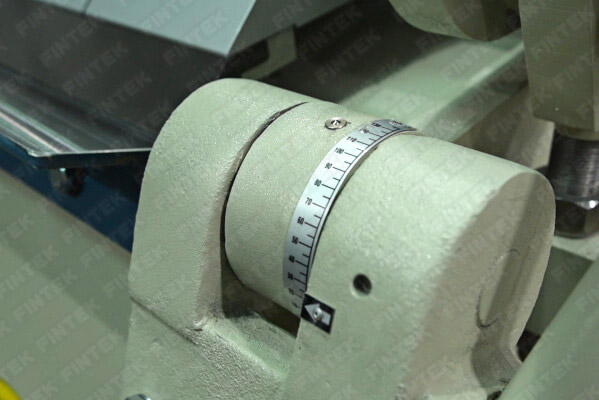

Bending Angle Adjuster

Bending angle 0-135 degree setting available.

SPECIFICATION

V - Straight Type Brake

Specification / Model	V-412	V-612	V-812	V-816	V-1014
Bending Length	1232 mm	1855 mm	2465 mm	2465 mm	3075 mm
Bending Capacity - Mild steel	2.5 mm	2.5 mm	2.5 mm	1.6 mm	2.0 mm
Bending Capacity - Stainless steel	1.6 mm	1.6 mm	1.6 mm	1.0 mm	1.2 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°	0 - 135°	0 - 135°
Beam adjustment	25 mm	25 mm	25 mm	25 mm	25 mm
Min Reverse Bend	16 mm	16 mm	16 mm	16 mm	16 mm
Packing Size (mm)	1800 x 850 x 1000	2450 X 850 X 1000	3120 X 850 X 1000	3120 X 850 X 1100	3700 X 850 X 1100
Packing Weight (KG)	600 KG	750 KG	1200 KG	1200 KG	1500 KG

Specification / Model	V-1016	V-1218	V-4022
Bending Length	3075 mm	3700 mm	4000 mm
Bending Capacity - Mild steel	1.6 mm	1.2 mm	0.8 mm
Bending Capacity - Stainless steel	1.0 mm	0.8 mm	0.6 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°
Beam adjustment	25 mm	25 mm	25 mm
Min Reverse Bend	16 mm	16 mm	16 mm
Packing Size (mm)	3700 X 850 X 1150	4250 X 850 X 1200	4700 X 900 X 1200
Packing Weight (KG)	1300 KG	1800 KG	2200 KG

V-6 - Box & Pan Type Brake

Specification / Model	V-412-6	V-612-6	V-812-6	V-816-6	V-1014-6
Bending Length	1220 mm	1830 mm	2440 mm	2440 mm	3050 mm
Bending Capacity - Mild steel	2.5 mm	2.5 mm	2.5 mm	1.6 mm	2.0 mm
Bending Capacity - Stainless steel	1.6 mm	1.6 mm	1.6 mm	1.0 mm	1.2 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°	0 - 135°	0 - 135°
Beam adjustment	25 mm	25 mm	25 mm	25 mm	25 mm
Min Reverse Bend	16 mm	16 mm	16 mm	16 mm	16 mm
Packing Size (mm)	1800 x 850 x 1100	2450 X 850 X 1100	3120 X 850 X 1150	3120 X 850 X 1100	3700 X 850 X 1100
Packing Weight (KG)	900 KG	1100 KG	1460 KG	1150 KG	1550 KG

Specification / Model	V-1016-6	V-1218-6	V-4022-6
Bending Length	3050 mm	3700 mm	4000 mm
Bending Capacity - Mild steel	1.6 mm	1.2 mm	0.8 mm
Bending Capacity - Stainless steel	1.0 mm	0.8 mm	0.6 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°
Beam adjustment	25 mm	25 mm	25 mm
Min Reverse Bend	16 mm	16 mm	16 mm
Packing Size (mm)	3700 X 850 X 1150	4250 X 850 X 1200	4700 X 900 X 1200
Packing Weight (KG)	1450 KG	2450 KG	2700 KG

V - Straight Brake

Straight Type Top Clamping Tool
Bending Angle Gauge from 0-135 degree
2 pieces of counter weight
Floor stand
Bending operation handle
Top beam adjustable hand wheel for bending radius angle

V-6 - Box & Pan Brake

Segmented Type Top Clamping Tool
Bending Angle Gauge from 0-135 degree
2 pieces of counter weight
Floor stand
Bending operation handle
Top beam adjustable hand wheel for bending radius angle
