VHS series

NC Hydraulic Up & Down Folding Machine

SPEC bUILD
NU / NS

NU / NS

Bench Brake

V

V

Manual Brake

VH

VH

Hydraulic Brake

VH-HC

VH-HC

Hydraulic Folding

VHS

VHS

Up & Down Folding

VHS

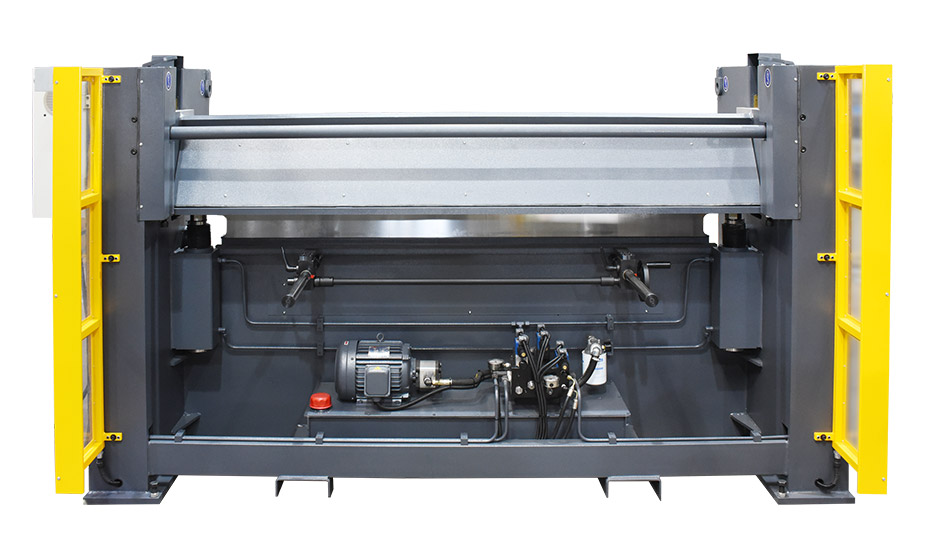

NC Hydraulic Up & Down Folding Machine

Home  /  Machines  /  Folding machine / VHS-series

performance

3.5 mm

Bending Thickness

2050 - 3100 mm

Bending Length

0-150°

Bending Degree

Features

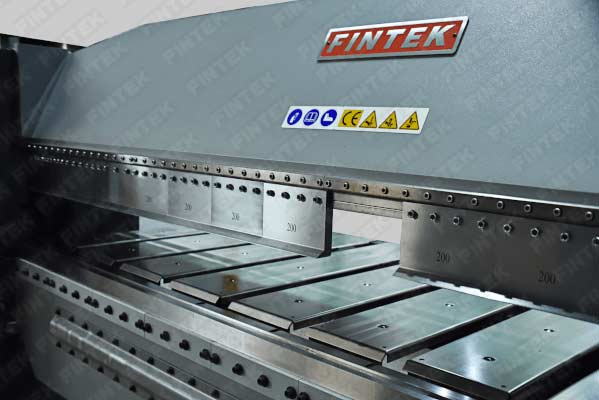

4" Segmented type
High tools

High-grade alloy steel blades

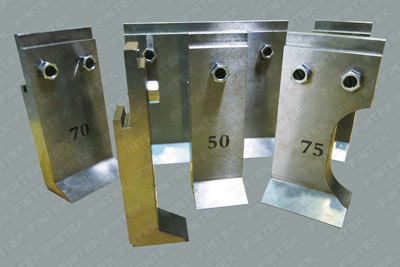

4" (100 mm) high segmented tools

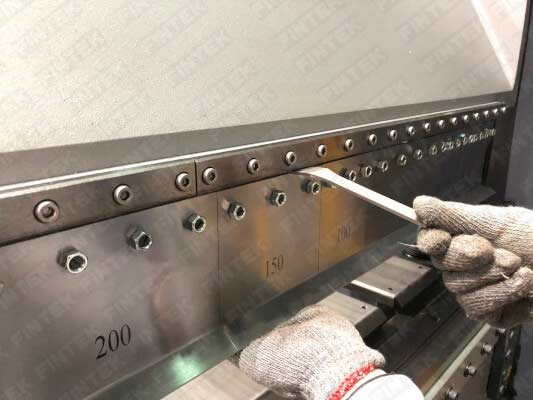

Quick change tool holder design
Arc shape design on two sides

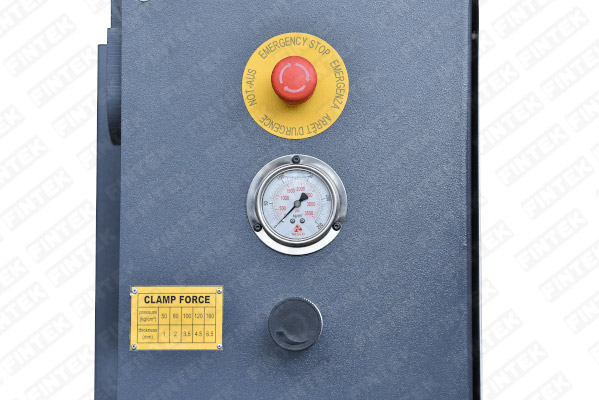

Emergency Stop Button

Emergency stop button on both side

Special Angle Bar
(VHS standard)

Special angle bar for multiple size reverse bending

Controllers

M15s single-axis NC controller - Standard

  • Entity button with Digital display
  • 1-axis NC control system - Angle setting
  • Programmable functions - 6 programs settable, 16 bending steps each.

FATEK 1-axis NC controller - Optional

  • 7" Touch screen display
  • Manual / Auto / Program functions
  • 1-axis NC control system - Angle setting
  • Programmable functions - 50 programs settable, 45 bending steps each.
  • FINTEK Special designed Graphical interface, easier learning and operation
  • Mutiple languages available

FATEK 2-axis NC controller - Optional

  • 7" Touch screen display
  • Manual / Auto / Program functions
  • 2-axis NC control system - Angle setting + motorized back gauge setting
  • 800 / 1000 / 1250 mm motorized power back gauge available
  • Programmable functions - 50 programs settable, 45 bending steps each.
  • FINTEK Special designed Graphical interface, easier learning and operation
  • Mutiple languages available

Schneider 2-axis NC controller - Optional

  • 7" Touch screen display
  • Manual / Auto / Program functions
  • 2-axis NC control system - Angle setting + motorized back gauge setting
  • 800 / 1000 / 1250 mm motorized power back gauge available
  • Programmable functions - 256 programs settable, 50 bending steps each.
  • FINTEK Special designed Graphical interface, easier learning and operation
  • Mutiple languages available

OPTIONALS

800 mm manual back gauge with support table

800 mm manual back gauge with sheet metal support table

Motorized power back gauge

800 / 1000 / 1250 mm motorized power back gauge with sheet support table

CE Conformity
Machine

CE Safety sensor guard +
CE parts +
CE Certification available

Customized shape
upper tools

Customize design bending tools

Segmented
Bottom Die

Segmented bottom die on request

SPECIFICATION

VHS - Hydraulic Up & Down Folding machine

VHS
Specification / Model VHS-0635 VHS-0835 VHS-1035
Bending Length 2050 mm 2550 mm 3100 mm
Bending Capacity - Mild steel 3.5 mm 3.5 mm 3.5 mm
Bending Capacity - Stainless steel 2.5 mm 2.5 mm 2.5 mm
Bending Angle 0 - 150° 0 - 150° 0 - 150°
Max open height - without tool 300 mm 300 mm 300 mm
Standard tool Box height 100 mm 100 mm 100 mm
Min Reverse Bend 35 mm 35 mm 35 mm
Motor  (HP) 5 HP 7.5 HP 7.5 HP
Packing Size (mm) 3420 x 1500 x 1750 3920 x 1750 x 1860 4370 x 1770 x 1890
Packing Weight (KG) 2540KG 3900KG 4520KG
VHS-1020X
Specification / Model VHS-1020X
Bending Length 3100 mm
Bending Capacity - Mild steel 2.0 mm
Bending Capacity - Stainless steel 1.2 mm
Bending Angle 0 - 135°
Max open height - Straight Tool 235 mm
Max open height - Segmented Tool (Opt.) 135 mm
Box height -  Segmented Tool (Opt.) 100 mm (4")
Min Reverse Bend 35 mm
Motor  (HP) 7.5 HP
Packing Size (mm) 4370 x 1770 x 1790
Packing Weight (KG) 4600 KG

VHS - Segmented type

  • Quickly tool change Holder device
  • Segmented Upper blade height 100mm (4”), assorted segments width & quantity depending on machine size
  • Gap clearance manual adjustor
  • Three functions foot pedal
  • Hydraulic pressure adjustable at front side
  • NC angle bending device of M15s controller
  • 600mm manual back gauge
  • Standard insert bar width 30mm

VHS - Segmented type

  • Schneider 2 Axes NC Controller with:
    A.7” Touch screen
    B.20 mm min front distance
    C.800mm power back gauge and sheet plate supporter table
  • Extended back gauge to 1000/1250mm
  • CE Conformity
  • Special tool shape or size or quantity
