i - Series

Hydraulic Ironworkers

SPEC

i

Hydraulic Ironworkers

Home  /  Machines  /  ironworker / i-series

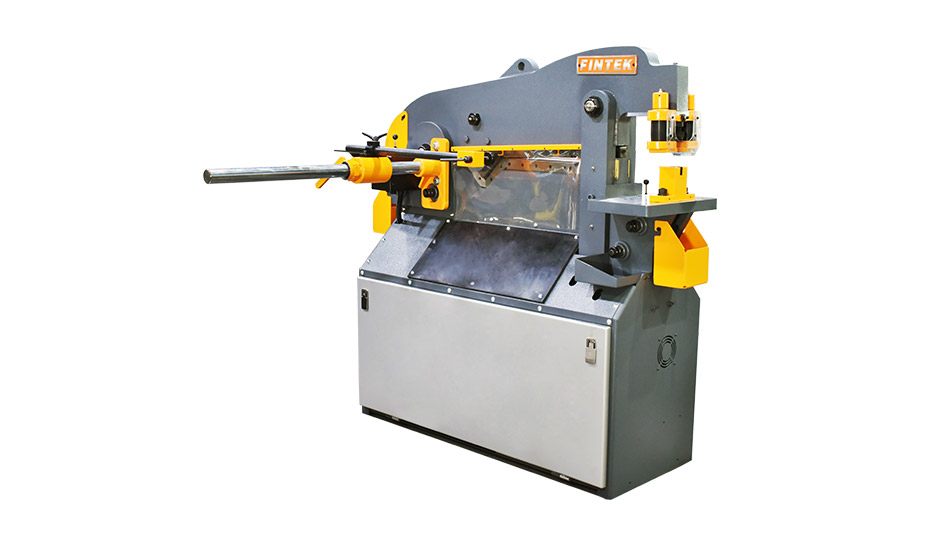

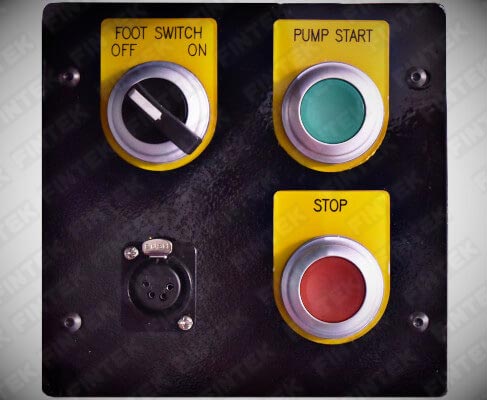

Features

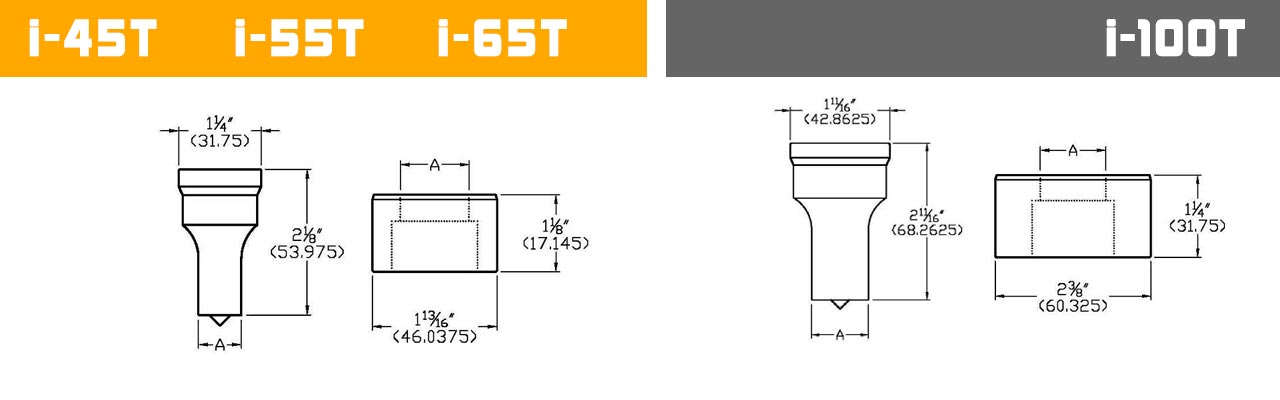

Punch
Round 		Die
Round 		Standard for Punch
Round 		Die
Round 		Standard for
1/4" 9/32" i-45 / i-55 / i-65 / i-100 13/16" 7/8" i-45 / i-55 / i-65
5/16" 11/32" i-45 / i-55 / i-65 7/8" 15/16" i-55 / i-65 / i-100
3/8" 13/32" i-45 / i-55 / i-65 / i-100 15/16" 1" i-55 / i-65
7/16" 15/32" i-45 / i-55 / i-65 1" 1-1/16" i-55 / i-65 / i-100
1/2" 17/32" i-45 / i-55 / i-65 / i-100 1-1/16" 1-1/8" i-55 / i-65
9/16" 5/8" i-45 / i-55 / i-65 1-1/4" 1-5/16" i-100
5/8" 11/16" i-45 / i-55 / i-65 / i-100 1-1/2" 1-9/16" i-100
11/16" 3/4" i-45 / i-55 / i-65 1-9/16" 1-5/8" i-100
3/4" 13/16" i-45 / i-55 / i-65 / i-100

Punch Station

Quick-Release Punching Die
14 sets of Punch & Die for i-55T
10 sets of Punch & Die for i-45T & i-100T
Quick change and effortless design
Customized or Special Tools provide on request (Optional)

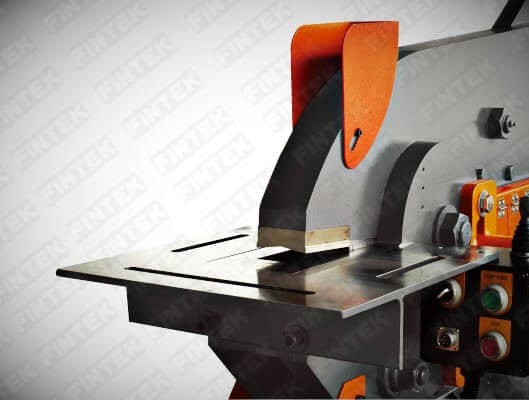

Coping/Notching Station

SStandard Notching knife with Cover

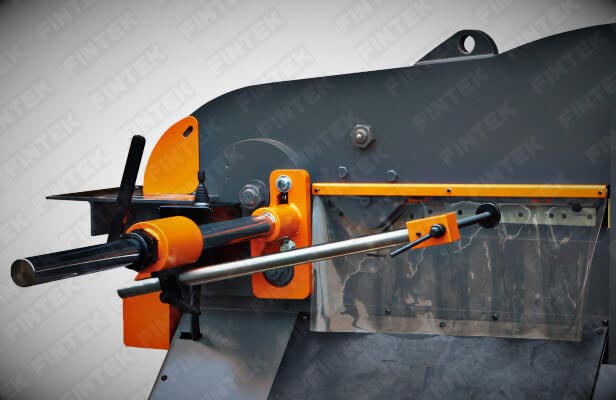

Manual Back Gauge

Manual Back Gauge and Stopper

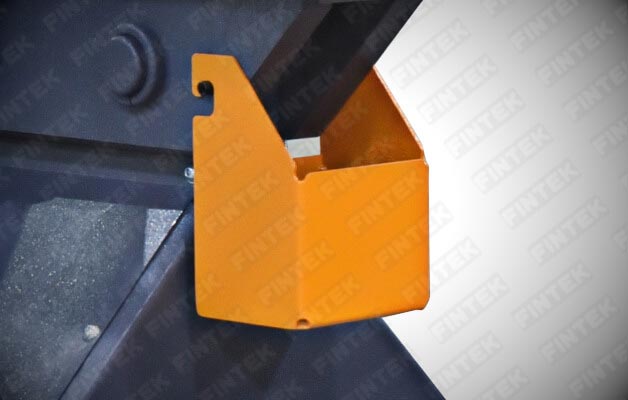

Basket

Front and Rear ​Basket for collecting cut out pieces

OPTIONALS

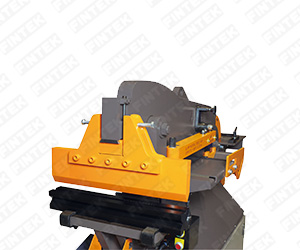

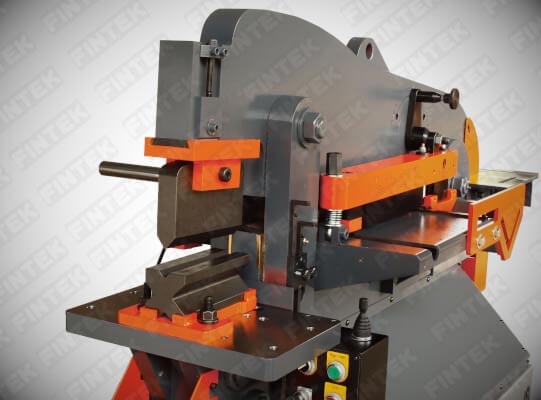

24" Bending attachment

24" Bending attachment

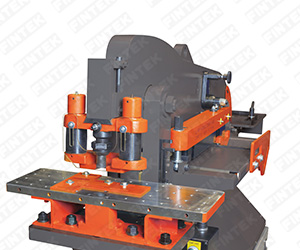

Plate Gauging Table

Plate Gauging Table

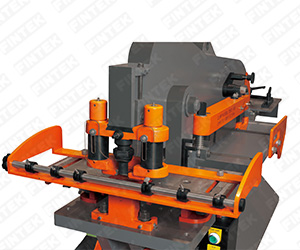

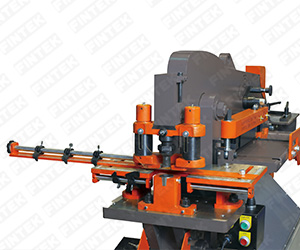

Quick Set Table Assembly

Quick set table assembly with quick set bar gauge assembly

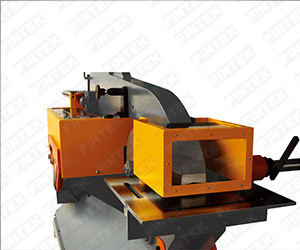

Safety Rear Guard

Safety Rear Guard

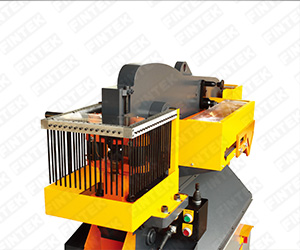

Safety Front Guard

Safety Front Guard with Chip Bucket

Angle Gauge Assembly

Quick Set Angle Gauge Assembly

SPECIFICATION

i - Hydraulic Ironworker

Specification / Model i-45t i-65t i-100t
Throat Depth 127 mm
5" 		203 mm
8" 		304 mm
12"
Open Height 311 mm
12-1/4" 		343 mm
13-1/2" 		393 mm
15-1/2"
Closed Height 210 mm
8-1/4" 		235 mm
9-1/4" 		260 mm
10-1/4"
Stroke 101 mm
4" 		108 mm
4-1/4" 		133 mm
5-1/4"
Table Size 203 x 419 mm
8" x 16-1/2" 		254 x 432 mm
10" x 17" 		368 x 533 mm
14-1/2" x 21"
Punch (short Ton) 45 Tons 65 Tons 100 Tons
Punch Hole size
(Max. material thickness) 		1", 25.4 mm
( 1/2", 12 mm ) 		13/16", 20 mm
(3/4", 19 mm) 		1-1/8", 28 mm
(1", 25 mm)
Max Hole size
(material thickness) - special toolings 		1-1/2", 38 mm
( 3/16", 4 mm ) 		5", 127 mm
(1/8", 3 mm) 		5", 127 mm
(3/16", 4mm)

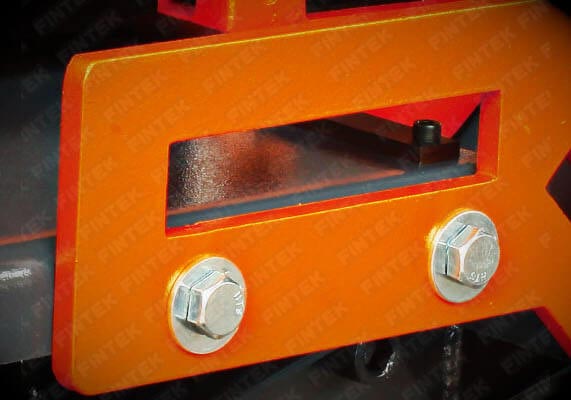

Plate Shear (thickness x length) 330 mm, 13" length
15 x 152 mm,  5/8" x 6"
12 x 203 mm, 1/2" x 8"
6 x 330 mm, 1/4" x 13" 		393 mm, 15-1/2" length
25 x 101 mm,  1" x 4"
19 x 254 mm, 3/4" x 10"
15 x 381 mm, 5/8" x 15" 		520 mm, 20-1/2" length
25 x 304 mm,  1" x 12"
19 x 457 mm, 3/4" x 18"
12 x 508 mm, 1/2" x 20"

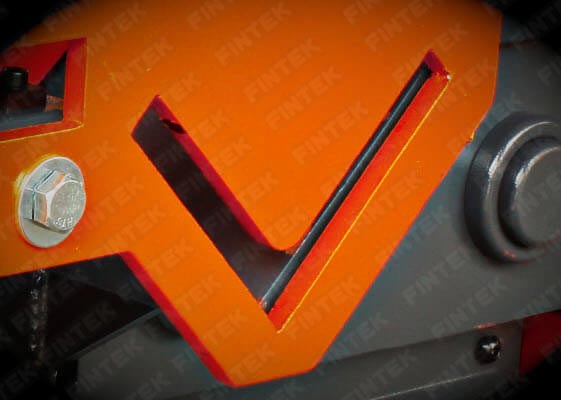

Angle Shear 88 x 88 x 8 mm
3-1/2" x 3-1/2" x 5/16" 		127 x 127 x 9.5 mm
5" x 5" x 3/8" 		152 x 152 x 15 mm
6" x 6" x 5/8"

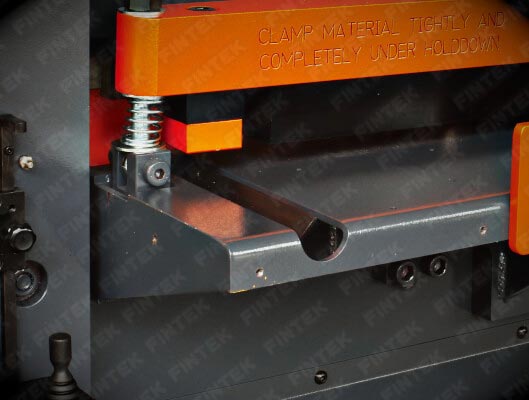

Round Bar Shear 12 mm
1/2" 		25 mm
1" 		31 mm
1-1/4"
Coper-Notcher (Max.) 57 x 76 x 6 mm
2-1/4" x 3" x 1/4" 		69 x 101 x 6 mm
2-3/4" x 4" x 1/4"
 101 x 152 x 9.5 mm
4" x 6" x 3/8"
Bending Attachment 152 mm
6" 		203 mm
8"
 304 mm
12"
Punch End Stroke Per Minute 50 spm
@(12 mm, 1/2") 		60 spm
@(12 mm, 1/2") 		40 spm
@(19 mm, 3/4")
Work Station Height 1092 mm
43" 		1092 mm
43" 		1092 mm
43"
Oil Capacity 48 L
12 Gallons
 80 L
20 Gallons 		100 L
25 Gallons
Motor (HP) 6.5 HP 10 HP 15 HP
Dimmensions (mm) 610 x 1397 x 1473 610 x 1676 x 1524 889 x 2286 x 1689
Net Weight (kg) 1100 1230 2560

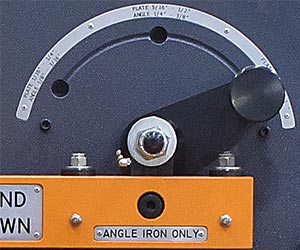

Ironworker

  • Punch Attachment
  • Manual Back Gauge & Side Guard
  • Fixed angle hold down
  • Bending Attachment
  • Oil level gauge
  • Corping & Notching

Ironworker

  • 24" Bending attachment
  • Quick set table assembly with quick set bar gauge assembly
  • Safety rear guard
  • Plate gauging table
  • Quick set angle gauge assembly
  • Safety front guard + chip bucket
