B-60

Hydraulic Profile Bender

SPEC

B

Hydraulic Profile Bender

Home  /  Machines  /  Profile Bender / B-60

Features

Multiple types Bending Rolls mold

OPTIONALS

Single phase motor

Upgrade to Single phase motor

SPECIFICATION

B-60 - Hydraulic Profile Bender

Specification / Model B-60
Shaft Diameters 60 Φ mm
Lower Rolls Diameters 215 Φ mm
Top Roll Diameter 215 Φ mm
Hydraulic Power 16 ton
Working Speed 4 m/min
Motor Power 2.0 HP
Packing Size (mm) 1000 x 1400 x 1650
Gross Weight (kg) 950

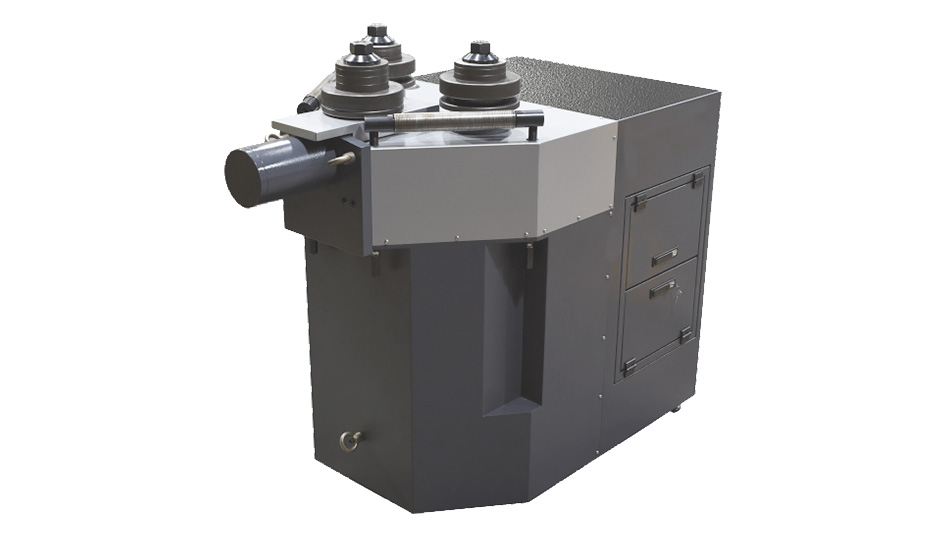

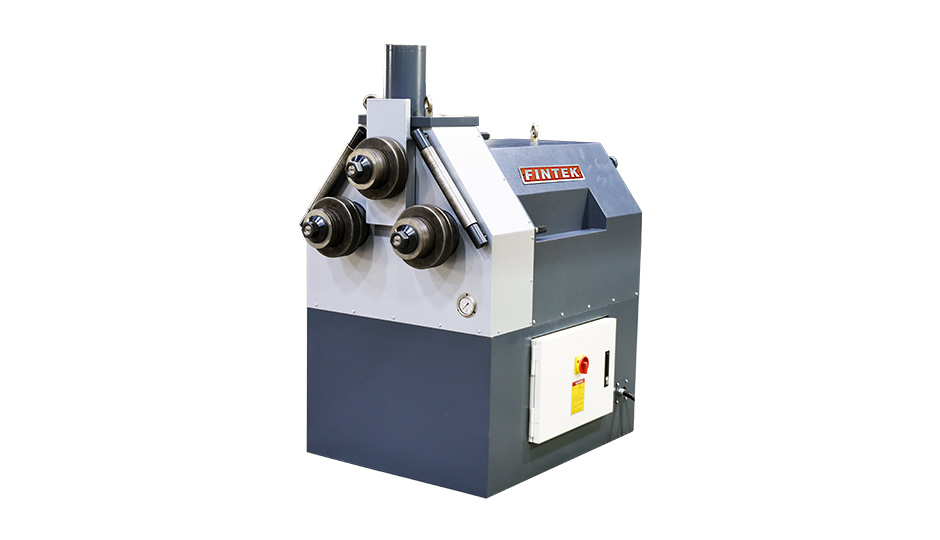

B-60 Profile Bender

  • Three rolls are driven by motor
  • High grade steel welded machine construction
  • Horizontal and Vertical Working position

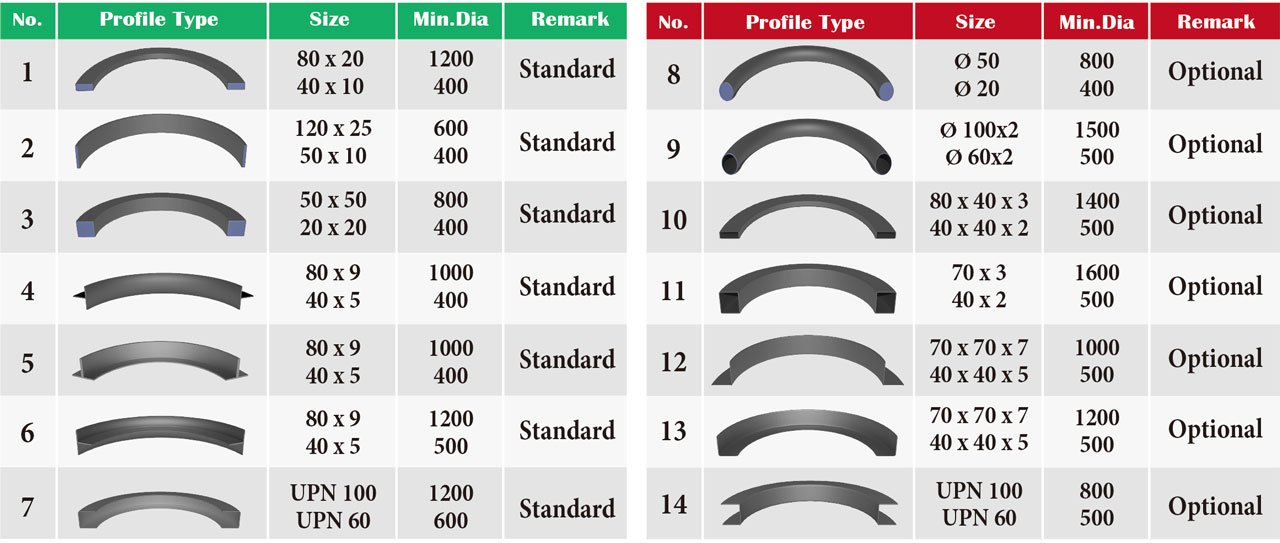

  • 7 types of standard bending rolls mold
  • Portable control foot pedal with DRO panel

B-60 Profile Bender

  • Pipe and Tube bending rolls mold
  • Section steel bending rolls mold
  • Customized bending rolls mold
  • Single phase motor
