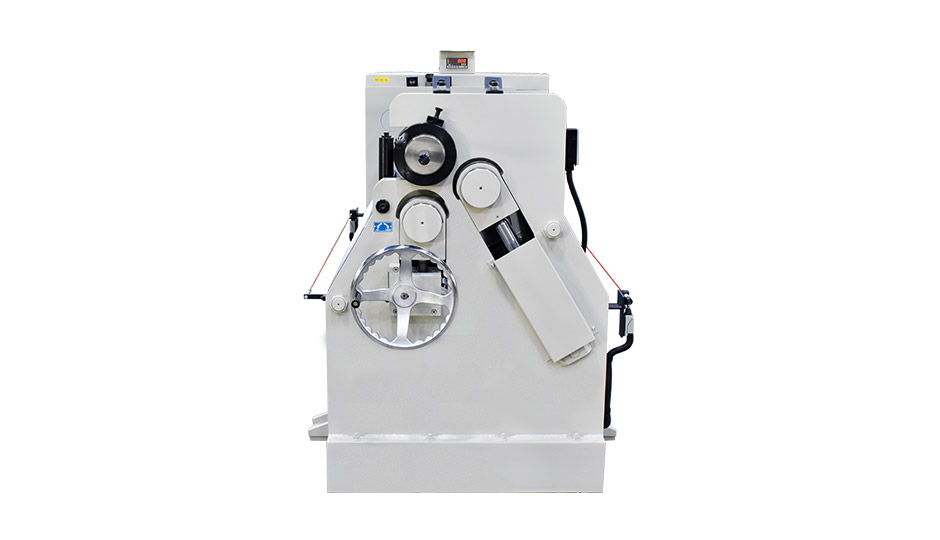

Hydraulic Initial Pinch Bending Roll

Home  /  Machines  /  Rolling machines / PR-series

performance

2.5 - 8.0 mm

Bending Thickness

1270 - 2540 mm

Bending Length

95 - 180 mm

Roll Diameter

Features

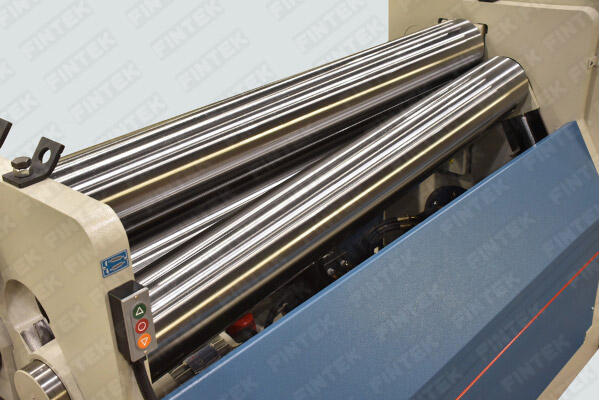

Top Grade Alloy Steel Rolls

All 3 rolls made of ​Top Grade Alloy Steel Rolls hardness up to HRC 53-55

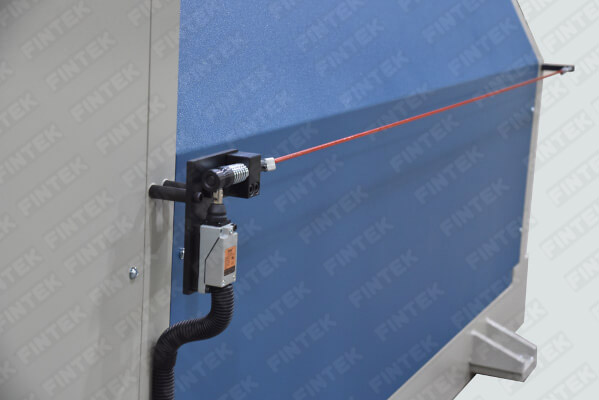

Emergency Stop Safety Cable

Emergency Stop Safety Cable

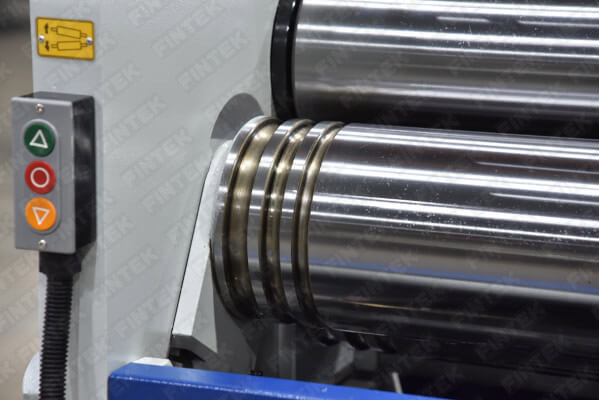

Wire grooves

Wire grooves (Optional)
Standard for PR-95 models

OPTIONALS

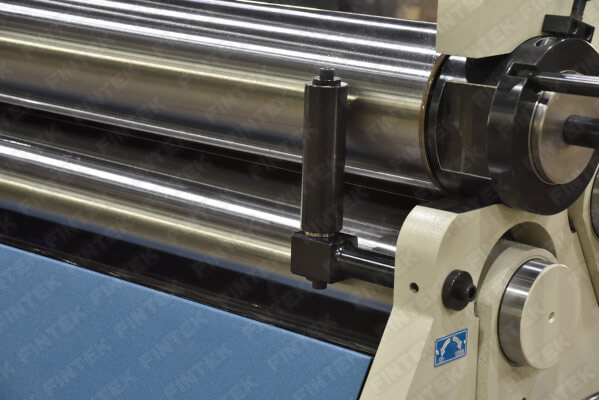

Cone Bending Attachment

Cone Bending Attachment

Wire Grooves

Wire Grooves

Wireless remote controller

Wireless remote controller instead of foot pedal controller

SPECIFICATION

PR - Hydraulic Initial Pinch Bending Roll

PR-04' / 1300 mm
Specification / Model PR-0425H PR-0440H PR-0465H PR-0480H
Bending Length 1270 mm 1300 mm 1300 mm 1300 mm
Bending Capacity - Mild steel 2.5 mm 4.0 mm 6.5 mm 8.0 mm
Roll diameter 95 mm 120 mm 150 mm 180 mm
Motor  (HP) 1.5 HP 2 HP 3 HP 5 HP
Roll speed (m / min) 3.6 2.6 2.2 2.37
Packing Size (mm) 2150 x 850 x 1350 2500 x 1000 x 1450 2500 x 1100 x 1500 2500 x 1200 x 1570
Packing Weight (KG) 690 1250 1630 2210
PR-05' / 1550 mm
Specification / Model PR-0520H PR-0535H PR-0545H PR-0570H
Bending Length 1550 mm 1550 mm 1550 mm 1550 mm
Bending Capacity - Mild steel 2.0 mm 3.5 mm 4.5 mm 7.0 mm
Roll diameter 95 mm 120 mm 150 mm 180 mm
Motor  (HP) 1.5 HP 2 HP 3 HP 5 HP
Roll speed (m / min) 3.6 2.6 2.2 2.37
Packing Size (mm) 2350 x 850 x 1350 2700 x 1000 x 1450 2700 x 1100 x 1500 2750 x 1200 x 1570
Packing Weight (KG) 764 1350 1790 2375
PR-06' / 2050 mm
Specification / Model PR-0625H PR-0640H PR-0650H
Bending Length 2050 mm 2050 mm 2050 mm
Bending Capacity - Mild steel 2.5 mm 4.0 mm 5.0 mm
Roll diameter 120 mm 150 mm 180 mm
Motor  (HP) 2 HP 3 HP 5 HP
Roll speed (m / min) 2.6 2.2 2.37
Packing Size (mm) 3200 x 1000 x 1450 3200 x 1100 x 1500 3250 x 1200 x 1570
Packing Weight (KG) 1580 2080 2800
PR-08' / 2540 mm
Specification / Model PR-0830H
Bending Length 2540 mm
Bending Capacity - Mild steel 3.0 mm
Roll diameter 150 mm
Motor  (HP) 3HP
Roll speed (m / min) 2.2
Packing Size (mm) 3750 x 1100 x 1500
Packing Weight (KG) 2400

PR - Hydraulic Initial Pinch Roll

  • All three rolls are driven by hydraulic system
  • Side/Pinch roll cylinders adjustment synchronously
  • All rolls are made of top-grade alloy steel hardened upto hrc53∘±1
  • Rigid construction for precise & smooth operation, and long life time usage

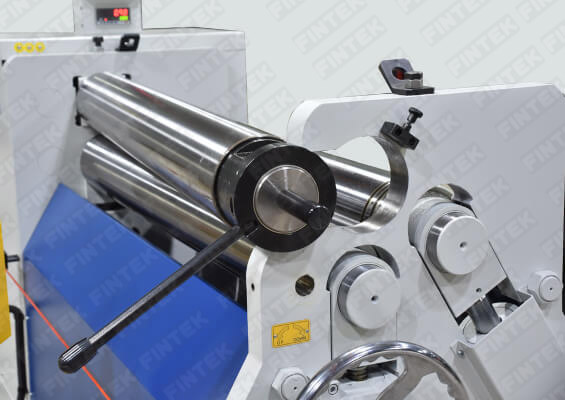

  • Top roll can be swiveled out for easy removal of the finished workpieces

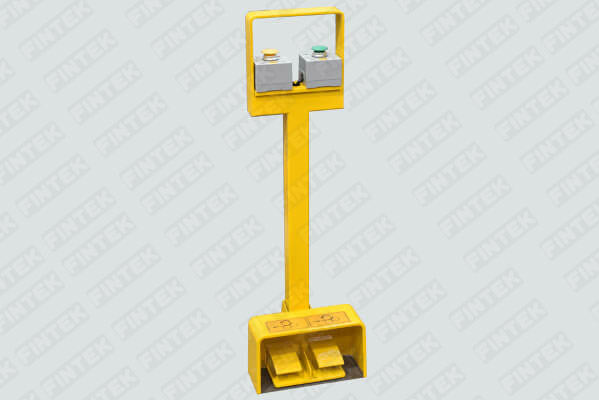

  • Foot switch for forward/reverse, fitted with a protective housing
  • Machine power auto shut off whenever top roll swivels out from end frame
  • Emergency stop cable device

PR - Hydraulic Initial Pinch Bending Roll

  • Cone bending attachment
  • Wireless remote control unit (instead of foot switch unit)
  • CE Conformity
  • Wire Grooves
