HH series

NC Hydraulic Shearing machine

SPEC bUILD
E

E

Electric Shear

F

F

Foot shear

A

A

Air power shear

P

P

Compact shear

H

H

Hydraulic shear

HH

HH

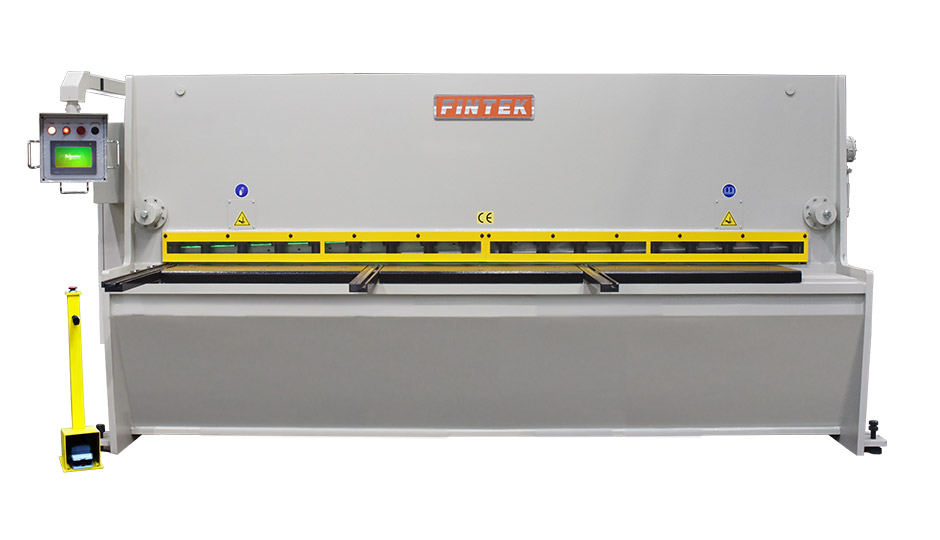

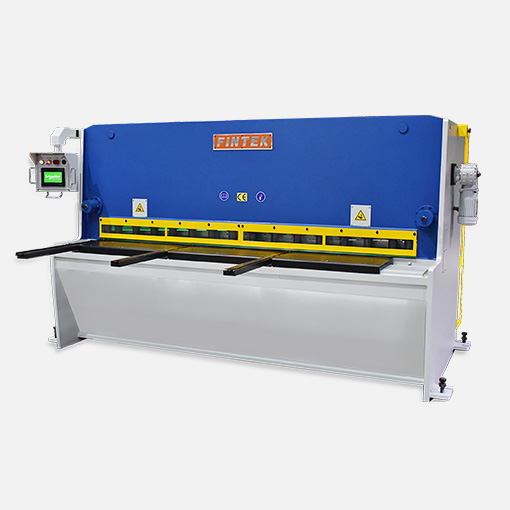

NC Hydraulic Shear

HH

NC Heavy-duty Hydraulic Shear

Home  /  Machines  /  Shearing machines / HH-series

performance

6.5 - 10.0 mm

Cutting Thickness - MS

4.5 - 6.5 mm

Cutting Thickness - SS

2540 - 4080 mm

Max Cutting Length

Features

Schneider 2-axis NC controller

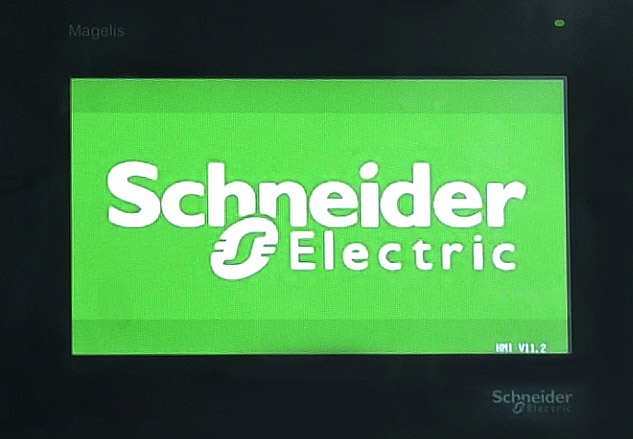

7" Touch screen

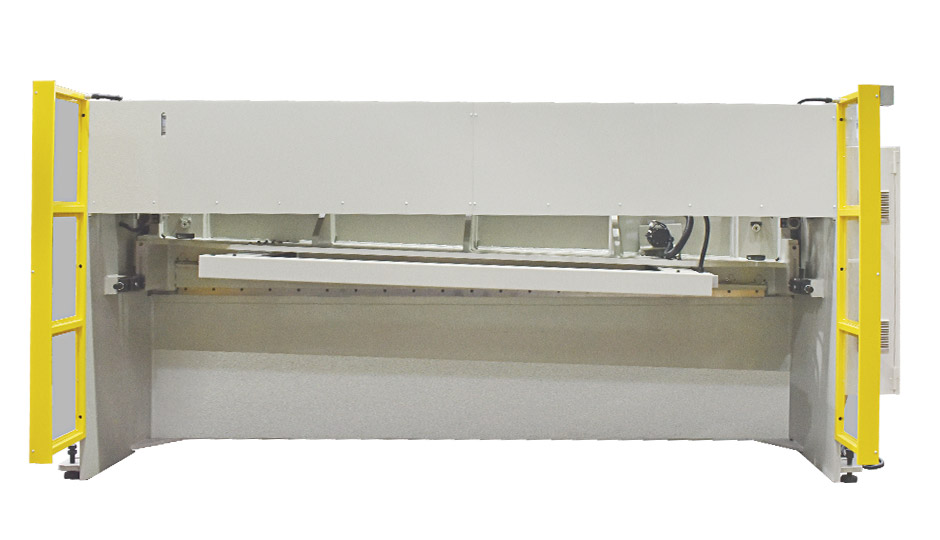

800 mm motorized back gauge
Blade Gap clearance adjust

Blade gap clearance adjust

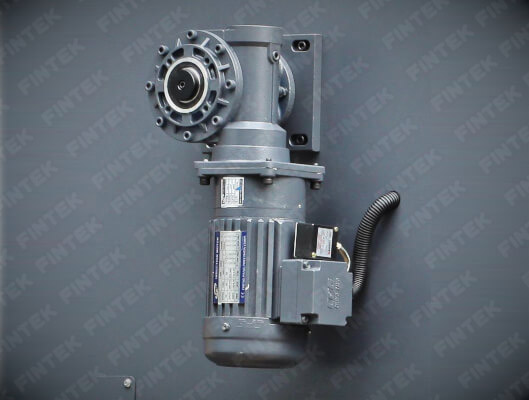

Automatic Blade Clearance Adjustment Function

Foot pedal

Foot pedal with Emergency Stop Button

OPTIONALS

Back gauge with lifting function

Back gauge with lifting function

CE Conformity
Machine

CE Safety sensor guard +
CE parts +
CE Certification available

Pneumatic Sheet supporter
(Air power)

Pneumatic sheet supporter for thin plate cutting

Angle gauge

Angle gauge for angle plate cutting

Extend side gauge

1000 / 1250 / 1500 mm extend side gauge with support base

SPECIFICATION

HH - NC Heavy-Duty Hydraulic Shear

H-08' / 2540 mm
Specification / Model HH-0865 HH-08100
Cutting Length 2540 mm 2540 mm
Cutting Capacity - Mild steel 6.5 mm 10 mm
Cutting Capacity - Stainless steel 4.5 mm 6.5 mm
Strokes per minute (S.P.M) 18 16
Hold-downs Number 16 16
Hold-downs Presssure 12 tons 24 tons
Side Gauge / Front Support Arm 1000 mm 1000 mm
Power Back Gauge 800 mm 800 mm
Blade Clearance Adjustment Automatic Automatic
Motor  (HP) 20 HP 25 HP
Oil tank capacity (​Liters) 200 300
Packing Size (mm) 3660 x 1920 x 2150 3650 x 2000 x 2200
Packing Weight (KG) 5800 kg 8500 kg
H-10' / 3100 mm
Specification / Model HH-1065 HH-10100
Cutting Length 3100 mm 3100 mm
Cutting Capacity - Mild steel 6.5 mm 10 mm
Cutting Capacity - Stainless steel 4.5 mm 6.5 mm
Strokes per minute (S.P.M) 16 14
Hold-downs Number 18 18
Hold-downs Presssure 15 tons 29 tons
Side Gauge / Front Support Arm 1000 mm 1000 mm
Power Back Gauge 800 mm 800 mm
Blade Clearance Adjustment Automatic Automatic
Motor  (HP) 20 HP 25 HP
Oil tank capacity (​Liters) 200 300
Packing Size (mm) 4220 x 1920 x 2150 4300 x 2000 x 2200
Packing Weight (KG) 6200 kg 9500 kg
H-13' / 4080 mm
Specification / Model HH-1365
Cutting Length 4080 mm
Cutting Capacity - Mild steel 6.5 mm
Cutting Capacity - Stainless steel 4.5 mm
Strokes per minute (S.P.M) 12
Hold-downs Number 23
Hold-downs Presssure 20 tons
Side Gauge / Front Support Arm 1000 mm
Power Back Gauge 800 mm
Blade Clearance Adjustment Automatic
Motor  (HP) 25 HP
Oil tank capacity (Liters) 300
Packing Size (mm) 5280 x 2000 x 2200
Packing Weight (KG) 10500 kg

HH - NC Hydraulic Shear

  • Schneider Touch 7" screen NC controller
  • NC servo motorized back gauge
  • Automatic blade clearance adjustment
  • High grade, high carbon/chrome 2-edge upper blade and 4-edge bottom blade
  • Front supporting arm with dual scale

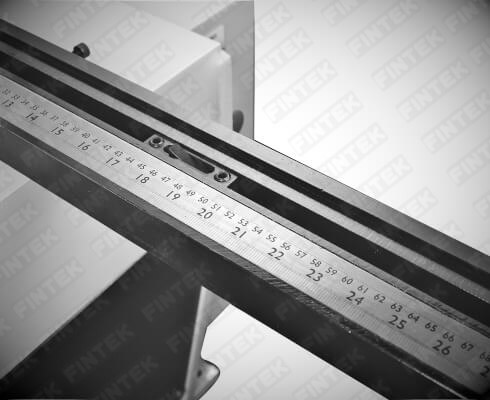

  • Side gauge with dual scale
  • Front feeding worktable with rollers
  • Full length finger guard
  • Hydraulic independent Hold-Downs
  • Overload protected hydraulic system
  • Foot pedal with safety protection
  • Full electrics & cabinet with operation panel

HH - NC Hydraulic Shear

  • CE conformity
  • Angle gauge
  • Upgrade bigger motor increased strokes
  • Hydraulic or Pneumatic sheet supporter
  • Back gauge with lifting function
  • Extended front supporting arm,length 1.5/2.0/3.0 meters
  • Extended side gauge,length 1.5/2.0/3.0 meters
