N

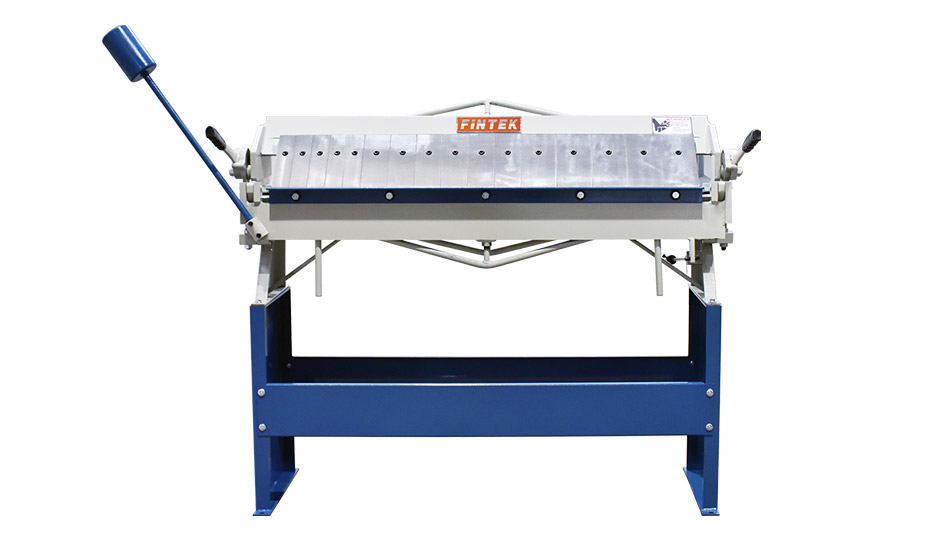

Bench type Box & Pan / Straight Brake

Home  /  Machines  /  Folding machine / N-series

performance

0.8 - 1.6 mm

Bending Thickness

1220 - 3075 mm

Bending Length

0-135°

Bending Degree

Features

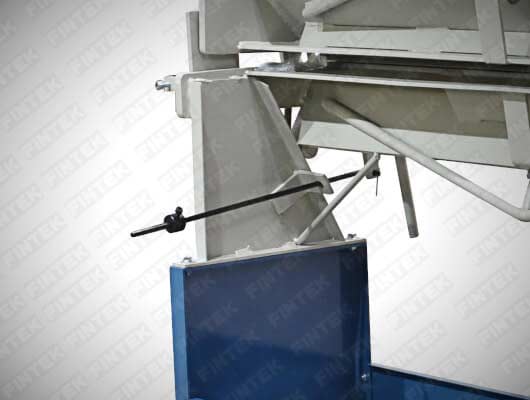

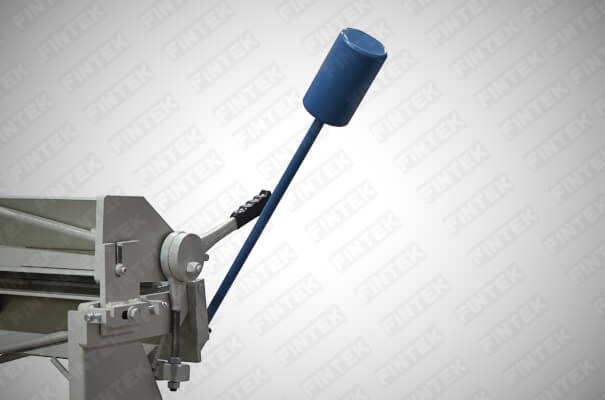

Counter Weight

All manual braker equipped the counter weight, save effort designed, easier operation

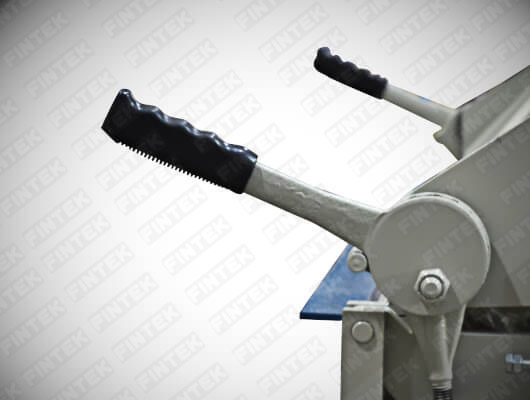

Clamping Handle

For clamping workpiece, must clamp both two sides

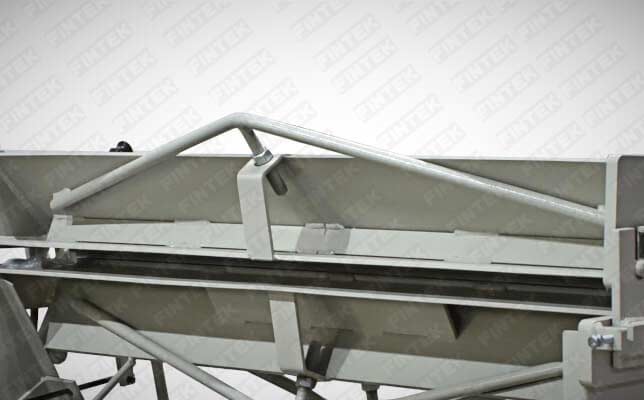

Beam Crowning Compensation

Top Beam and Bottom Beam crowning compensation by screws

SPECIFICATION

NS - Straight Type Brake

Specification / Model NS-4822 NS-4816 NS-5016 NS-6016 NS-7218
Bending Length 1232 mm 1232 mm 1270 mm 1550 mm 1855 mm
Bending Capacity - Mild steel 0.8 mm 1.6 mm 1.6 mm 1.6 mm 1.2 mm
Max. Lift of Beam 22 mm 44 mm 44 mm 44 mm 44 mm
Beam adjustment 8 mm 16 mm 16 mm 16 mm N/L
Packing Size (mm) 1630 X 450 X 680 1630 X 550 X 750 1610 X 600 X 750 2000 X 650 X 820 2400 X 650 X 1000
Packing Weight (KG) 130 KG 190 KG 210 KG 250 KG 550 KG
Specification / Model NS-9618 NS-12020
Bending Length 2465 mm 3075 mm
Bending Capacity - Mild steel 1.2 mm 1.0 mm
Max. Lift of Beam 44 mm 44 mm
Beam adjustment N/L N/L
Packing Size (mm) 3050 X 650 X 1050 3650 X 650 X 1100
Packing Weight (KG) 775 KG 930 KG

NU - Box & Pan Type Brake

Specification / Model NU-4822 NU-4816 NU-5016 NU-6016 NU-7218
Bending Length 1220 mm 1230 mm 1270 mm 1550 mm 1830 mm
Bending Capacity - Mild steel 0.8 mm 1.6 mm 1.6 mm 1.6 mm 1.2 mm
Max. Lift of Beam 22 mm 44 mm 44 mm 44 mm 44 mm
Beam adjustment 8 mm 16 mm 16 mm 16 mm N/L
Packing Size (mm) 1630 X 450 X 700 1630 X 600 X 750 1670 X 600 X 750 2000 X 650 X 820 2400 X 650 X 1050
Packing Weight (KG) 130 KG 210 KG 230 KG 280 KG 500 KG
Specification / Model NU-9618 NU-12020
Bending Length 2440 mm 3050 mm
Bending Capacity - Mild steel 1.2 mm 1.0 mm
Max. Lift of Beam 44 mm 44 mm
Beam adjustment N/L N/L
Packing Size (mm) 3050 X 650 X 1100 3650 X 650 X 1150
Packing Weight (KG) 830 KG 1000 KG

NS - Straight Brake

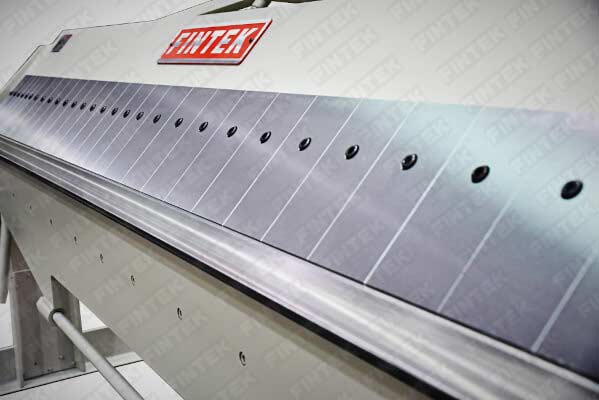

  • Straight Type Top Clamping Tool
  • One piece counter weight (Except 22 GA machine)
  • Hand brake NS model, including one pair of bending rails

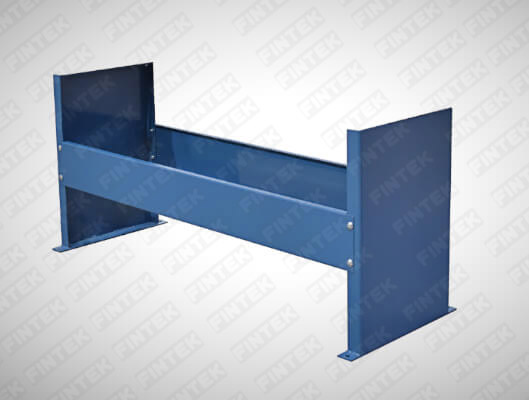

  • Floor stand (Optional)

NU - Box & Pan Brake

  • Straight Type Top Clamping Tool
  • One piece counter weight (Except 22 GA machine)
  • Box & Pan brake NU model, including fingers assortment of 51mm x 5, 76mm x 6, 101mm x 5. Total 16 pcs
  • Floor stand (Optional)
