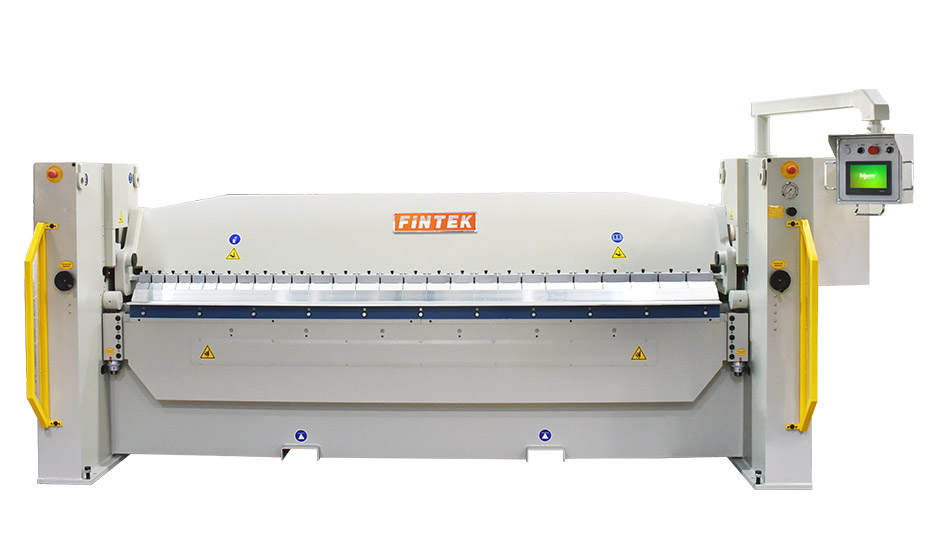

VH-HC series

NC Hydraulic Folding Machine

SPEC bUILD

VH-HC

NC Hydraulic Folding Machine

Home / Machines / Folding machine / VH-HC-series

performance

2.5 - 6.5 mm

Bending Thickness

2050 - 4000 mm

Bending Length

0-135°

Bending Degree

Features

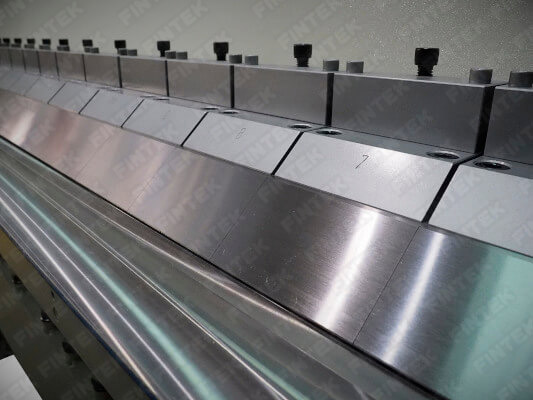

Segmented / Straight Type Clamping Tools

High-grade alloy steel blades
Multiple finger size (seg tool)
For box & pan bending (seg tool)
Easy replacement design (seg tool)
One piece tool (straight tool)

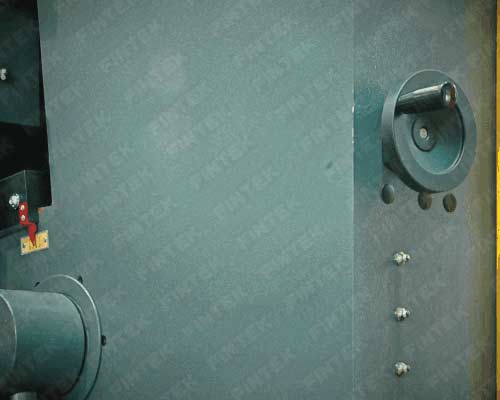

Hold-downs pressure adjuster handwheel

Top Beam and Bottom Beam crowning compensation by screws

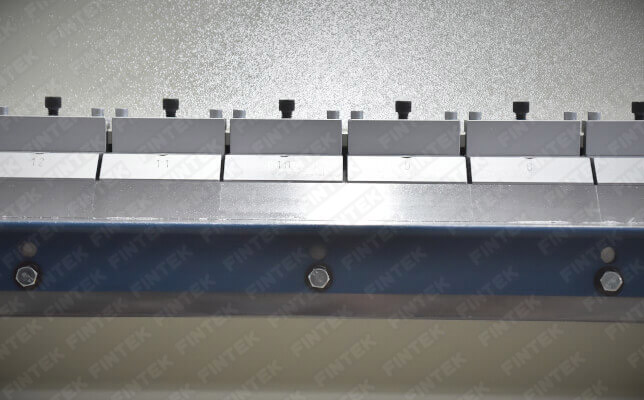

Angle Bar
(65 standard)

Angle bar Two-position movable design (For reverse bending)

Special Angle Bar
(25/35/45 standard)

Special angle bar for multiple size reverse bending
(For 2.5/3.5/4.5 mm models)

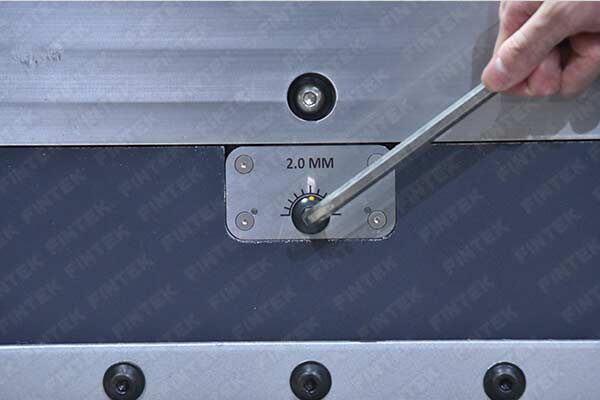

Lower Crowning
Compensation

Quick adjust crowning device
(For 2.5/3.5/4.5 mm models)

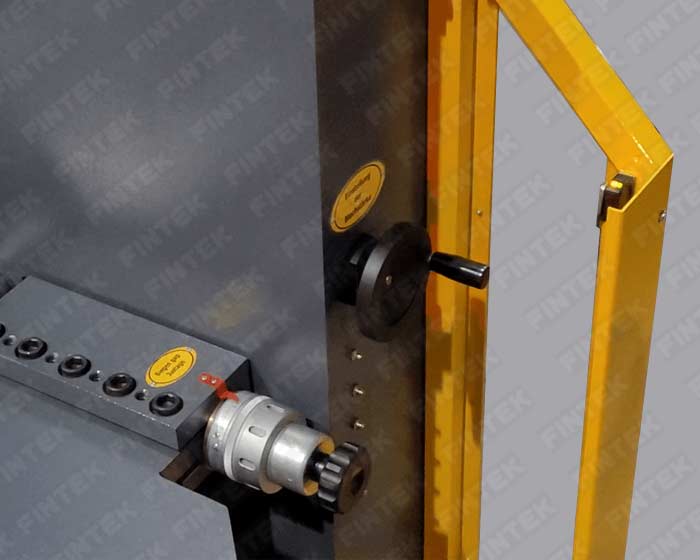

Gap Clearance
adjuster

Adjust the bending gap clearance depends on sheet metal thickness

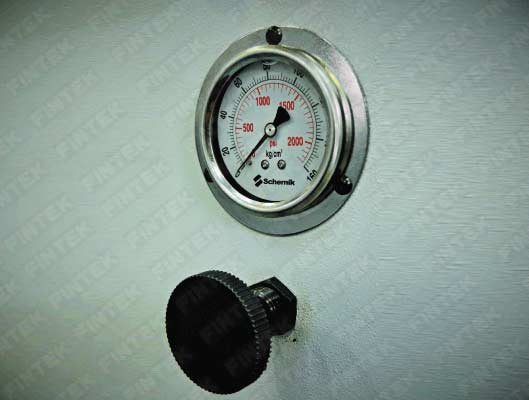

Hydraulic Pressure
Adjuster

Adjust the hydraulic pressure depends on sheet metal thickness

NC controller
1-axis / 2-axis

Programmable function NC controller
1-axis NC (Standard) 2-axis NC (Optional)

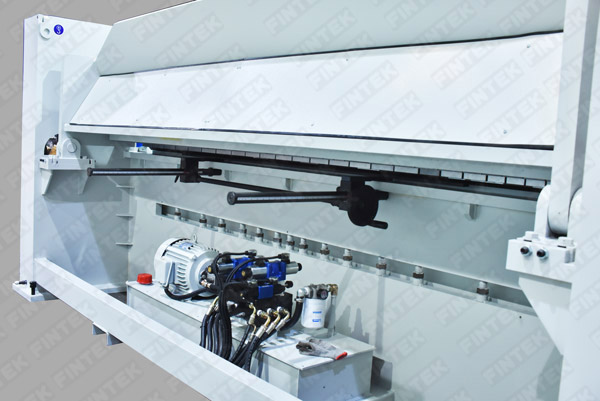

Manual Handwheel
Back Gauge

600 mm Manual handwheel adjust back gauge, can upgrade to 800 mm motorized back gauge (optional)

Controllers

M15s single-axis NC controller - Standard

Entity button with Digital display
1-axis NC control system - Angle setting
Programmable functions - 6 programs settable, 16 bending steps each.

FATEK 1-axis NC controller - Optional

7" Touch screen display
Manual / Auto / Program functions
1-axis NC control system - Angle setting
Programmable functions - 50 programs settable, 45 bending steps each.
FINTEK Special designed Graphical interface, easier learning and operation
Mutiple languages available

FATEK 2-axis NC controller - Optional

7" Touch screen display
Manual / Auto / Program functions
2-axis NC control system - Angle setting + motorized back gauge setting
800 / 1000 / 1250 mm motorized power back gauge available
Programmable functions - 50 programs settable, 45 bending steps each.
FINTEK Special designed Graphical interface, easier learning and operation
Mutiple languages available

Schneider 2-axis NC controller - Optional

7" Touch screen display
Manual / Auto / Program functions
2-axis NC control system - Angle setting + motorized back gauge setting
800 / 1000 / 1250 mm motorized power back gauge available
Programmable functions - 256 programs settable, 50 bending steps each.
FINTEK Special designed Graphical interface, easier learning and operation
Mutiple languages available

OPTIONALS

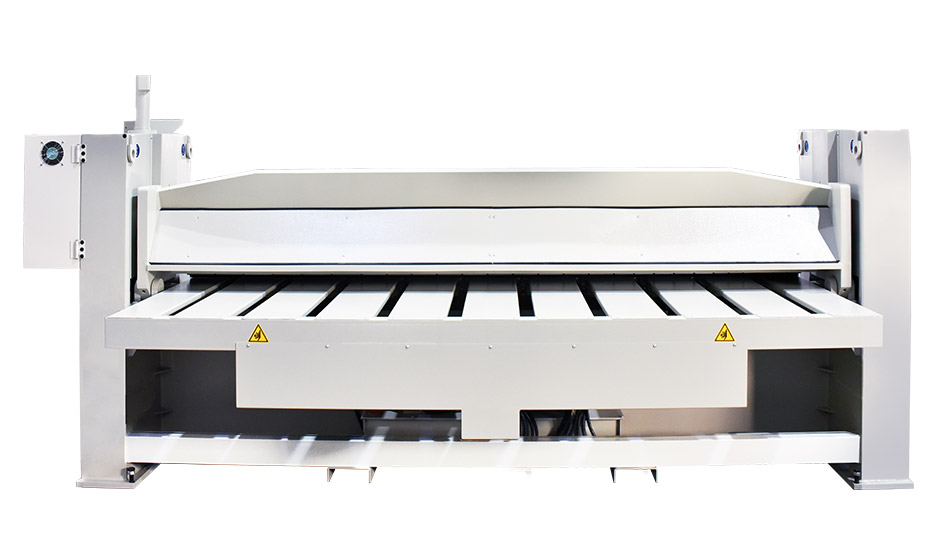

800 mm manual back gauge with support table

800 mm manual back gauge with sheet metal support table

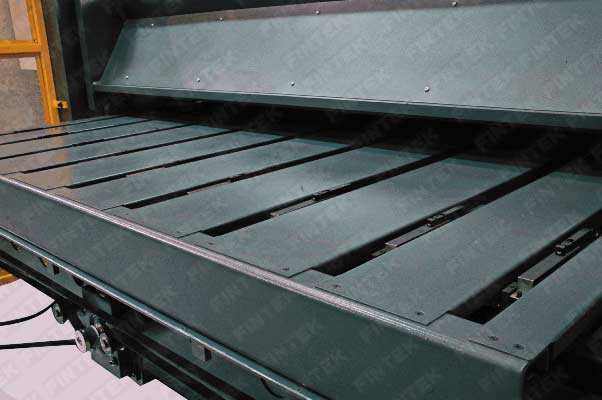

Motorized power back gauge

800 / 1000 / 1250 mm motorized power back gauge with sheet support table

CE Conformity
Machine

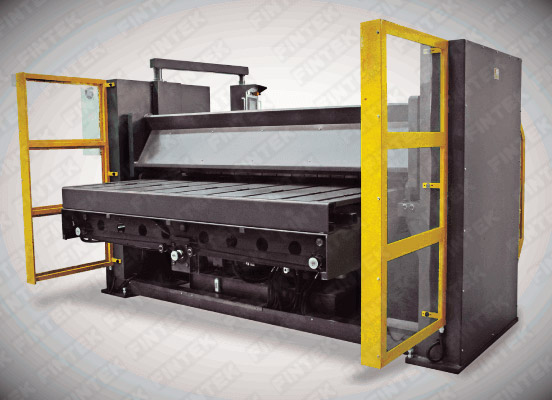

CE Safety sensor guard +
CE parts +
CE Certification available

Customized shape
upper tools

Customize design bending tools

SPECIFICATION

VH - Hydraulic Straight type Folding machine

VH-06-HC / 2050 mm

Specification / Model	VH-0625-HC	VH-0635-HC	VH-0645-HC	VH-0665-HC
Bending Length	2050 mm	2050 mm	2050 mm	2050 mm
Bending Capacity - Mild steel	2.5 mm	3.5 mm	4.5 mm	6.5 mm
Bending Capacity - Stainless steel	1.6 mm	2.5 mm	3.0 mm	4.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	15 mm	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP	10 HP
Packing Size (mm)	3000 x 1100 x 1750	3000 x 1100 x 1750	3300 x 1550 x 1900	3300 x 1550 x 1900
Packing Weight (KG)	1950 KG	2200 KG	3050 KG	3550 KG

VH-08-HC / 2550 mm

Specification / Model	VH-0825-HC	VH-0835-HC	VH-0845-HC	VH-0865-HC
Bending Length	2550 mm	2550 mm	2550 mm	2550 mm
Bending Capacity - Mild steel	2.5 mm	3.5 mm	4.5 mm	6.5 mm
Bending Capacity - Stainless steel	1.6 mm	2.5 mm	3.0 mm	4.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	15 mm	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP	10 HP
Packing Size (mm)	3850 x 1700 x 1800	3850 x 1700 x 1860	3900 x 1700 x 1900	3900 x 1750 x 2050
Packing Weight (KG)	3200KG	3700KG	4900KG	6000KG

VH-10-HC / 3100 mm

Specification / Model	VH-1025-HC	VH-1035-HC	VH-1045-HC	VH-1065-HC
Bending Length	3100 mm	3100 mm	3100 mm	3100 mm
Bending Capacity - Mild steel	2.5 mm	3.5 mm	4.5 mm	6.5 mm
Bending Capacity - Stainless steel	1.2 mm	2.5 mm	3.0 mm	4.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	15 mm	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP	10 HP
Packing Size (mm)	4300 x 1770 x 1890	4300 x 1770 x 1890	4500 x 1750 x 1950	4500 x 1750 x 2050
Packing Weight (KG)	3700KG	4220KG	5200KG	6800KG

VH-12-HC / 3700 mm

Specification / Model	VH-1220-HC	VH-1235-HC	VH-1245-HC
Bending Length	3700 mm	3700 mm	3700 mm
Bending Capacity - Mild steel	2.0 mm	3.5 mm	4.5 mm
Bending Capacity - Stainless steel	1.2 mm	2.5 mm	3.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP
Packing Size (mm)	5200 x 1750 x 1950	5200 x 1750 x 1950	5300 x 1750 x 2050
Packing Weight (KG)	4850KG	5150KG	6650KG

VH-40-HC / 4000 mm

Specification / Model	VH-4020-HC	VH-4035-HC	VH-4045-HC
Bending Length	4000 mm	4000 mm	4000 mm
Bending Capacity - Mild steel	2.0 mm	3.5 mm	4.5 mm
Bending Capacity - Stainless steel	1.2 mm	2.5 mm	3.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP
Packing Size (mm)	5600 x 1750 x 2050	5600 x 1800 x 2050	5600 x 1800 x 2100
Packing Weight (KG)	4600KG	6100KG	7600KG

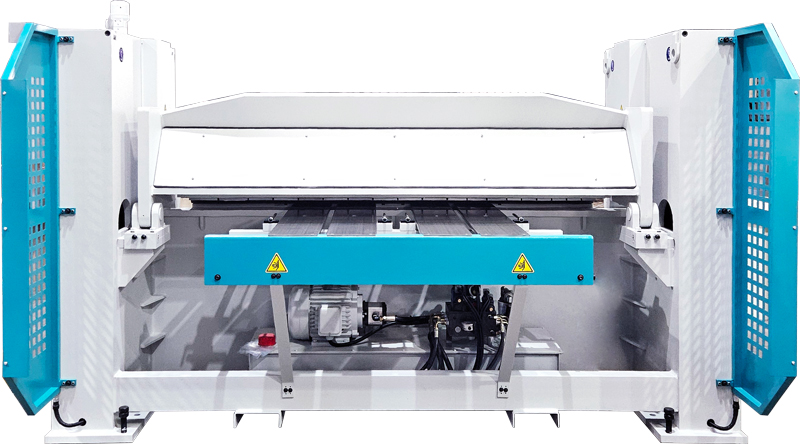

VH-6 - Hydraulic Segmented type Folding machine

VH-06-6HC / 2050 mm

Specification / Model	VH-0625-6HC	VH-0635-6HC	VH-0645-6HC	VH-0665-6HC
Bending Length	2050 mm	2050 mm	2050 mm	2050 mm
Bending Capacity - Mild steel	2.5 mm	3.5 mm	4.5 mm	6.5 mm
Bending Capacity - Stainless steel	1.6 mm	2.5 mm	3.0 mm	4.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	15 mm	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP	10 HP
Packing Size (mm)	3000 x 1100 x 1750	3000 x 1100 x 1750	3300 x 1550 x 1900	3300 x 1550 x 1900
Packing Weight (KG)	2100KG	2450KG	3200KG	3710KG

VH-08-6HC / 2550 mm

Specification / Model	VH-0825-6HC	VH-0835-6HC	VH-0845-6HC	VH-0865-6HC
Bending Length	2550 mm	2550 mm	2550 mm	2550 mm
Bending Capacity - Mild steel	2.5 mm	3.5 mm	4.5 mm	6.5 mm
Bending Capacity - Stainless steel	1.6 mm	2.5 mm	3.0 mm	4.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	15 mm	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP	10 HP
Packing Size (mm)	3850 x 1700 x 1800	3850 x 1700 x 1860	3900 x 1700 x 1900	3900 x 1700 x 2050
Packing Weight (KG)	3400KG	3900KG	5100KG	6200KG

VH-10-6HC / 3100 mm

Specification / Model	VH-1025-6HC	VH-1035-6HC	VH-1045-6HC	VH-1065-6HC
Bending Length	3100 mm	3100 mm	3100 mm	3100 mm
Bending Capacity - Mild steel	2.5 mm	3.5 mm	4.5 mm	6.5 mm
Bending Capacity - Stainless steel	1.2 mm	2.5 mm	3.0 mm	4.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	15 mm	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP	10 HP
Packing Size (mm)	4300 x 1770 x 1890	4300 x 1770 x 1890	4500 x 1750 x 1950	4500 x 1750 x 2050
Packing Weight (KG)	4000KG	4520KG	5500KG	7100KG

VH-12-6HC / 3700 mm

Specification / Model	VH-1220-6HC	VH-1235-6HC	VH-1245-6HC
Bending Length	3700 mm	3700 mm	3700 mm
Bending Capacity - Mild steel	2.0 mm	3.5 mm	4.5 mm
Bending Capacity - Stainless steel	1.2 mm	2.5 mm	3.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP
Packing Size (mm)	5200 x 1750 x 1950	5200 x 1750 x 1950	5300 x 1750 x 2050
Packing Weight (KG)	5200KG	5500KG	7000KG

VH-40-6HC / 4000 mm

Specification / Model	VH-4020-6HC	VH-4035-6HC	VH-4045-6HC
Bending Length	4000 mm	4000 mm	4000 mm
Bending Capacity - Mild steel	2.0 mm	3.5 mm	4.5 mm
Bending Capacity - Stainless steel	1.2 mm	2.5 mm	3.0 mm
Bending Angle	0 - 135°	0 - 135°	0 - 135°
Min Reverse Bend	25 mm	30 mm	35 mm
Motor (HP)	3 HP	5 HP	7.5 HP
Packing Size (mm)	5600 x 1750 x 2050	5600 x 1800 x 2050	5600 x 1800 x 2150
Packing Weight (KG)	5000KG	6500KG	8000KG

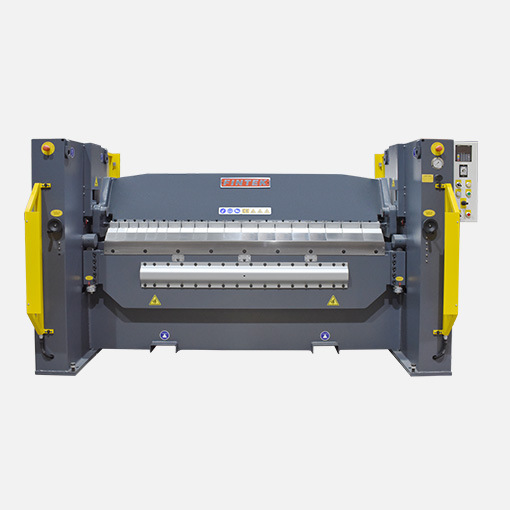

VH-HC - Straight type

Standard Straight type upper blade
Gap clearance manual adjustment
Hold-down pressure adjusted by hand-wheel
Hydraulic pressure adjustable at front side
Three functions foot pedal
M15s NC angle setting controller
600 mm Manual Back gauge

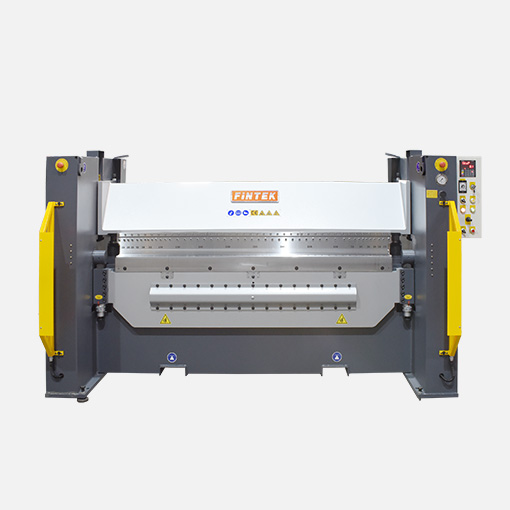

VH-6HC - Segmented type

Standard Segmented type upper blade
Gap clearance manual adjustment
Hold-down pressure adjusted by hand-wheel
Hydraulic pressure adjustable at front side
Three functions foot pedal
M15s NC angle setting controller
600 mm Manual Back gauge

VH-HC - Straight type

Schneider 2 Axes NC Controller with:
A. 7” Touch screen
B. 20 mm min front distance
C. 800mm power back gauge and sheet plate supporter table
Extended back gauge to 1000/1250mm
CE Conformity

VH-6HC - Segmented type

Schneider 2 Axes NC Controller with:
A. 7” Touch screen
B. 20 mm min front distance
C. 800mm power back gauge and sheet plate supporter table
Extended back gauge to 1000/1250mm
CE Conformity
Radius fingers or Customized Shape
