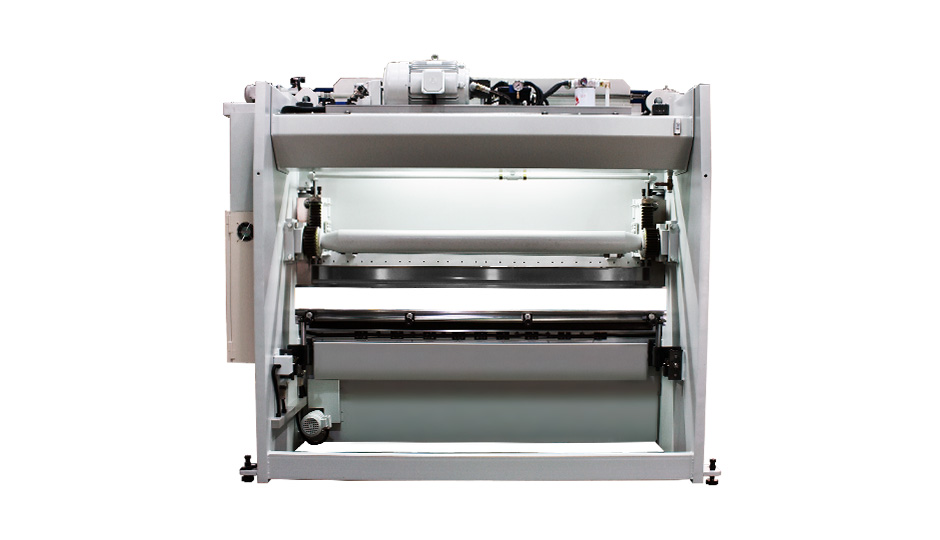

PB

Hydraulic Press Brake

Home  /  Machines  /  Press Brake / PB-series

performance

110-220 Tons

Bending Thickness

2600 - 4000 mm

Bending Length

9 Types

Bending Tools & Bottom Dies

Features

Top Blade & Bottom Die

110 - 220 Tons

Standard Top blade

Choose from T1 - T4

Standard Bottom Die

B2

 Controllers

Power Bending Device

  • Standard for 60-220 Tons Press Brake Model
  • Bending Depth control by +/- push buttons
  • Motorized power back gauge control by +/- push buttons
  • Control Panel
  • Inch / Single / Auto Bending mode
  • Emergency Stop Button
  • Sensor Run / Break switch

Delem DA41s 2-Axis NC Controller

  • Optional Controller for all PB models
  • Directly control by input bending value and power back gauge value
  • Programmable function
  • Muiltiple bending tools setting function
  • Control Panel
  • Inch / Single / Auto Bending mode
  • Emergency Stop Button
  • Sensor Run / Break switch

OPTIONALS

Deeper Throat Depth

Customized Deeper Throat Depth

T5 - T7 Top Blade

T5 / T6 / T7 Optional Blades
Customized Blades  and Bottom Dies on request

Safety Light Curtain

Safety sensor upgrade to Safety Light Curtain

Safety Rear Guard

Safety Rear Guard

Power grease injecting system

Power grease injecting system

SPECIFICATION

PB - Hydraulic Press Brake

PB - 110 Tons
Specification / Model PB-11026 PB-11032 PB-11040
Bending Length 2600 mm 3200 mm 4000 mm
Maximum Pressure 110 Ton 110 Ton 110 Ton
Bending thickness - Full length reference 4.5 mm 3.5 mm 2.5 mm
Distance Between Housings (mm) 2100 2600 3400
Ram Stroke (mm) 200 200 200
Table Width (mm) 200 200 200
Distance Between Table / Ram (mm) 350 350 350
Main Motor 10 HP 10 HP 10 HP
Approach Speed (mm/sec.) 80 80 80
Bending Speed (mm/sec.) 6 6 6
Return Speed (mm/sec.) 60 60 60
Manual Back Gauge 600 mm 600 mm 600 mm
Back Gauge Motor 0.5 HP 0.5 HP 0.5 HP
Throat Depth (mm) 250 250 250
Gross Weight (kg) 6200 7000 9000
Packing Size (mm) 3050 x 1650 x 2500 3650 x 1650 x 2550 4450 x 1800 x 2600
PB - 160 Tons
Specification / Model PB-16026 PB-16032 PB-16040
Bending Length 2600 mm 3200 mm 4000 mm
Maximum Pressure 160 Ton 160 Ton 160 Ton
Bending thickness - Full length reference 6.5 mm 5.0 mm 4.3 mm
Distance Between Housings (mm) 2100 2550 3350
Ram Stroke (mm) 200 200 200
Table Width (mm) 200 200 200
Distance Between Table / Ram (mm) 400 400 400
Main Motor 15 HP 15 HP 15 HP
Approach Speed (mm/sec.) 80 80 80
Bending Speed (mm/sec.) 6 6 6
Return Speed (mm/sec.) 60 60 60
Manual Back Gauge 600 mm 600 mm 600 mm
Back Gauge Motor 0.5 HP 0.5 HP 0.5 HP
Throat Depth (mm) 250 250 250
Gross Weight (kg) 8000 10000 13000
Packing Size (mm) 3050 x 1800 x 2650 3650 x 1800 x 2700 4500 x 1800 x 2800
PB - 220 Tons
Specification / Model PB-22026 PB-22032 PB-22040
Bending Length 2600 mm 3200 mm 4000 mm
Maximum Pressure 220 Ton 220 Ton 220 Ton
Bending thickness - Full length reference 9.0 mm 8.0 mm 6.5 mm
Distance Between Housings (mm) 2100 2500 3300
Ram Stroke (mm) 200 200 200
Table Width (mm) 200 200 200
Distance Between Table / Ram (mm) 400 400 400
Main Motor 20 HP 20 HP 20 HP
Approach Speed (mm/sec.) 80 80 80
Bending Speed (mm/sec.) 6 6 6
Return Speed (mm/sec.) 60 60 60
Manual Back Gauge 600 mm 600 mm 600 mm
Back Gauge Motor 0.5 HP 0.5 HP 0.5 HP
Throat Depth (mm) 250 250 250
Gross Weight (kg) 11000 12000 15000
Packing Size (mm) 3100 x 1950 x 2900 3700 x 2000 x 2950 4500 x 1800 x 3200

PB - Hydraulic Press Brake

  • 600mm Manual / Power ball screw back gauge w/counter display and frontal control
  • Choose one Top blade T1-T4
  • 4 face Bottom Die B2
  • Power Bending angle setting device
  • 600 mm Front Support Arm
  • Bottom Die / Table hydraulic crowning auto compensation
  • Control panel with low voltage switches/buttons
  • Foot switch w/safety projection housing
  • Tool box w/maintenance tools and leveling pads

PB - Hydraulic Press Brake

  • DELEM 2 Axes NC control System (Depth & Length)
  • CE Conformity
  • T5-T7 Optional Blade
  • Safety sensor protection system
  • Deeper throat
  • Special Blade and Bottom Die
  • Power grease injecting system
