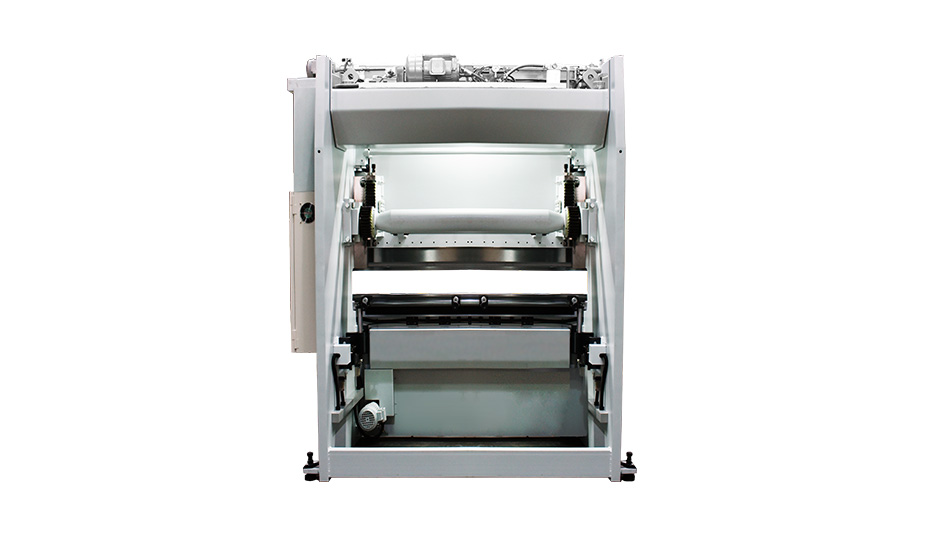

PB series

Hydraulic Press Brake

SPEC BUILD
PB-30-45

PB-30-45

Press Brake

PB-60-80

PB-60-80

Press Brake

PB-110-220

PB-110-220

Press Brake

PB

Hydraulic Press Brake

Home  /  Machines  /  Press Brake / PB-series

performance

30 - 45 Tons

Bending Thickness

1270 - 2000 mm

Bending Length

12 Types

Bending Tools & Bottom Dies

Features

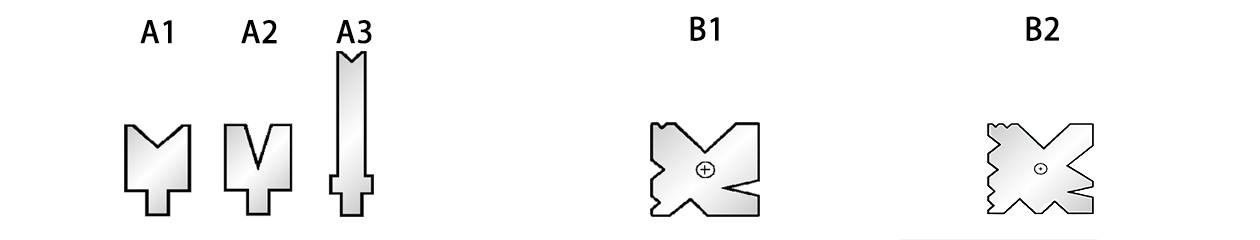

Top Blade & Bottom Die

30 - 45 Tons

Standard Top blade

Choose from A1 - A3

Standard Bottom Die

Choose from A1 - A3

 Controllers

Manual Hand Wheel Control Bending Device

  • Standard for 30 - 45 Tons Press Brake Model
  • Bending Depth adjust by hand wheel adjuster
  • Digital Read Out for Depth and Back Gauge value

Power Bending Device

  • Standard for 60-220 Tons Press Brake Model
  • Bending Depth control by +/- push buttons
  • Motorized power back gauge control by +/- push buttons
  • Control Panel
  • Inch / Single / Auto Bending mode
  • Emergency Stop Button
  • Sensor Run / Break switch

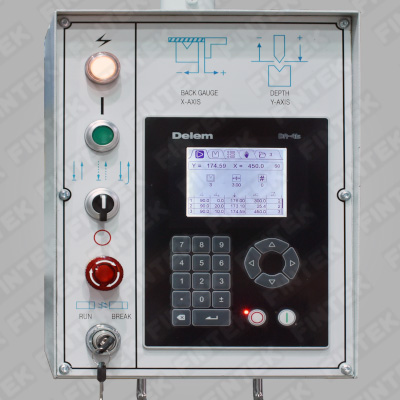

Delem DA41s 2-Axis NC Controller

  • Optional Controller for all PB models
  • Directly control by input bending value and power back gauge value
  • Programmable function
  • Muiltiple bending tools setting function
  • Control Panel
  • Inch / Single / Auto Bending mode
  • Emergency Stop Button
  • Sensor Run / Break switch

OPTIONALS

Deeper Throat Depth

Customized Deeper Throat Depth

T5 - T7 Top Blade

T5 / T6 / T7 Optional Blades
Customized Blades  and Bottom Dies on request

Safety Light Curtain

Safety sensor upgrade to Safety Light Curtain

Safety Rear Guard

Safety Rear Guard

Power grease injecting system

Power grease injecting system

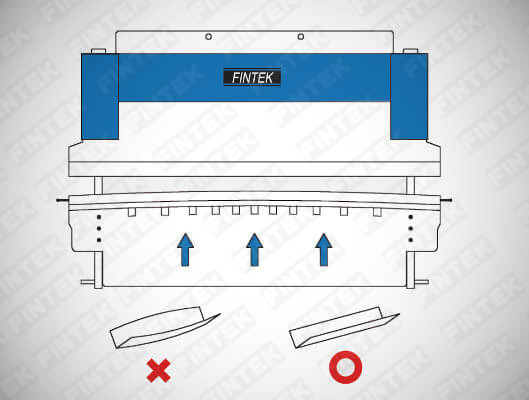

Hydraulic Compensation

Hydraulic Compensation system.
Automatically compensate the bending degree to make the workpiece bending wonderful.

SPECIFICATION

PB - Hydraulic Press Brake

PB - 30 / 45 Tons
Specification / Model PB-3012 PB-3015 PB-3020 PB-4515
Bending Length 1270 mm 1550 mm 2000 mm 1550 mm
Maximum Pressure 30 Ton 30 Ton 30 Ton 45 Ton
Bending thickness - Full length reference 2.5 mm 2.0 mm 1.5 mm 3.0 mm
Distance Between Housings (mm) 970 1250 1550 1250
Ram Stroke (mm) 150 150 150 150
Table Width Bottom Die Holder Bottom Die Holder Bottom Die Holder Bottom Die Holder
Distance Between Table / Ram (mm) 250 250 250 250
Main Motor 3HP 3HP 3HP 5HP
Approach Speed (mm/sec.) 80 80 80 80
Bending Speed (mm/sec.) 7 7 7 7
Return Speed (mm/sec.) 60 60 60 60
Manual Back Gauge 600 mm 600 mm 600 mm 600 mm
Back Gauge Motor 0.5 HP 0.5 HP 0.5 HP 0.5 HP
Throat Depth (mm) 200 200 200 200
Gross Weight (kg) 1200 1500 2400 2800
Packing Size (mm) 1400 x 1200 x 2050 1700 x 1200 x 2050 2300 x 1200 x 2050 1900 x 1300 x 2200

PB - Hydraulic Press Brake

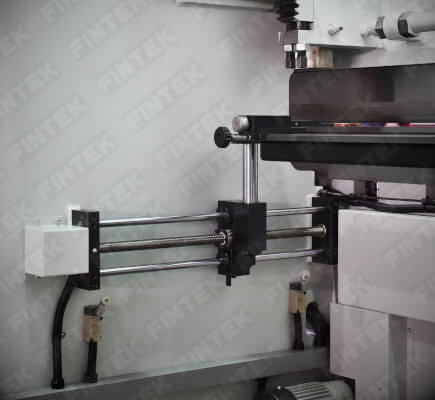

  • 600mm Manual / Power ball screw back gauge w/counter display and frontal control
  • Choose one Top blade T1-T4
  • 4 face Bottom Die B2
  • Power Bending angle setting device
  • 600 mm Front Support Arm
  • Bottom Die / Table hydraulic crowning auto compensation
  • Control panel with low voltage switches/buttons
  • Foot switch w/safety projection housing
  • Tool box w/maintenance tools and leveling pads

PB - Hydraulic Press Brake

  • DELEM 2 Axes NC control System (Depth & Length)
  • CE Conformity
  • T5-T7 Optional Blade

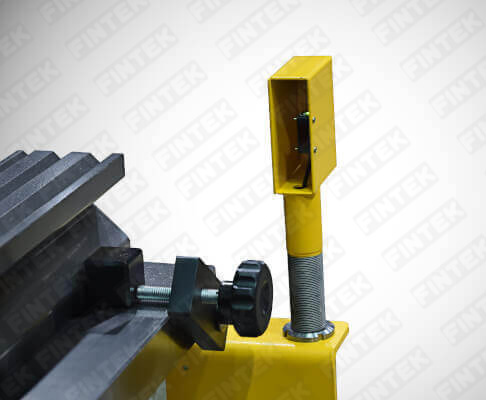

  • Safety sensor protection system
  • Deeper throat
  • Special Blade and Bottom Die
  • Power grease injecting system
