HR series

Double-Pinch Hydraulic Bending Roll

SPEC BUILD

HR

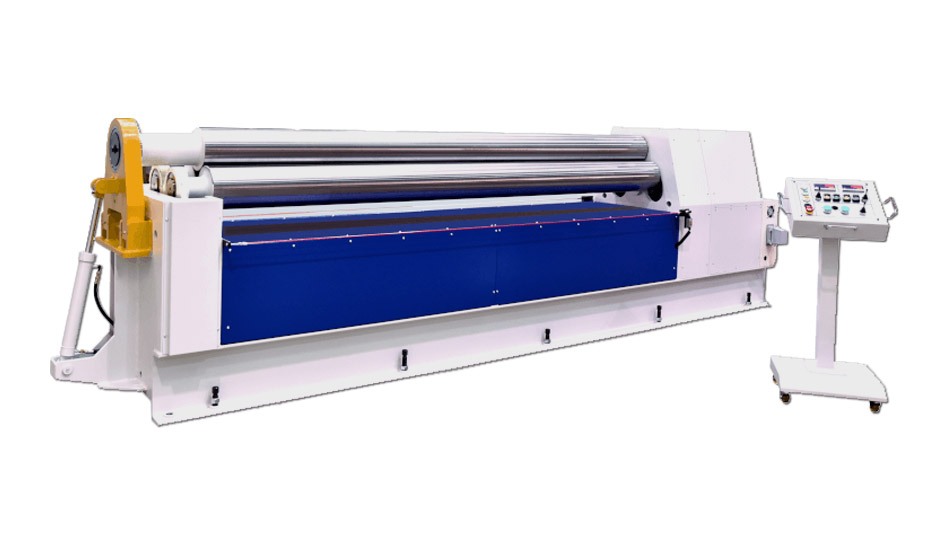

Hydraulic Double Pinch Bending Roll

Home / Machines / Rolling machines / HR-series

performance

4.0 - 16.0 mm

Bending Thickness

1550 - 3050 mm

Bending Length

205 - 310 mm

Roll Diameter

Features

◀
▶

Top Grade Alloy Steel Rolls

All 3 rolls made of Top Grade Alloy Steel Rolls hardness up to HRC 53-55

Emergency Stop Safety Cable

Emergency Stop Safety Cable

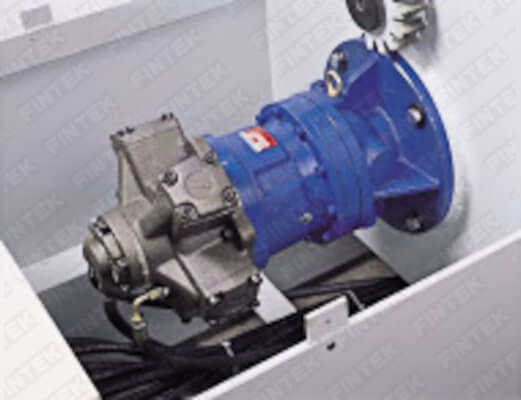

Planetary reduction gear & Pump

Fully Hydraulic System and Overload Protection System

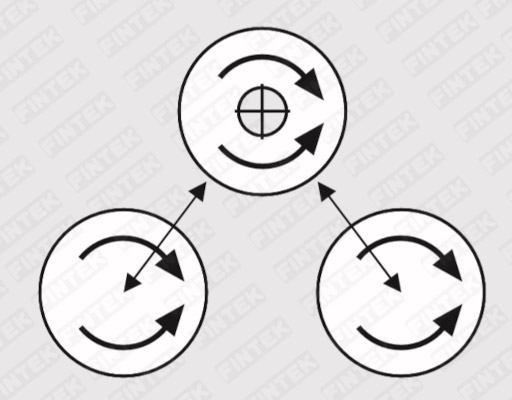

Double Pinch Bending Roll

3 rolls rotation driven indepentently
2 Pinch Rolls
Rolls driven by Hydraulic power
Rolls camber design

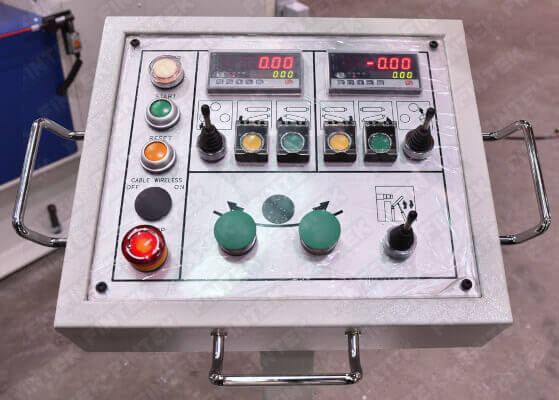

Portable Control Panel

Forward / Reverse
Pinch Roll Up / Down
Side Pinch Roll Up / Down
DRO for Pinch Roll Position
Drop End Up / Down
Emergency stop

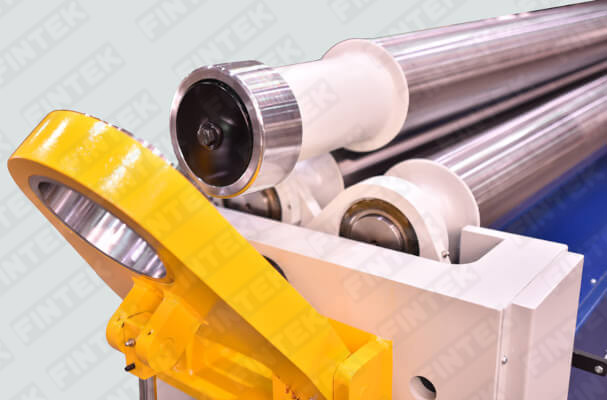

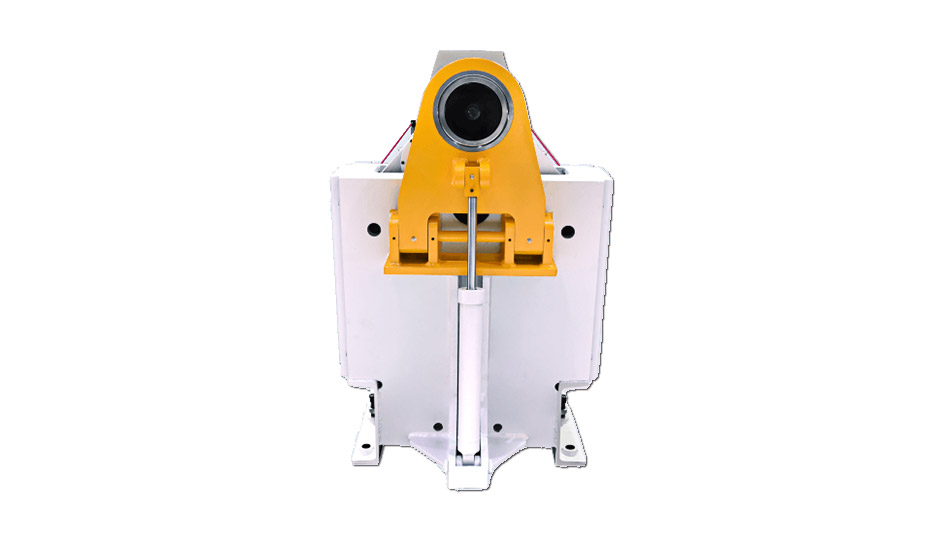

Power Drop-end

Hydraulic Power Drop End

OPTIONALS

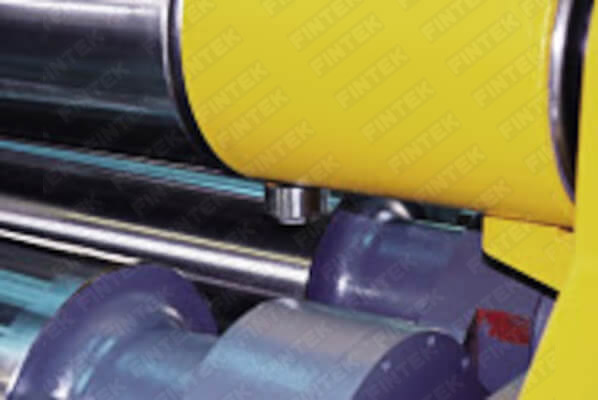

Cone Bending Attachment

Cone Bending Attachment

Infinitely Variable Transmission

Infinitely Variable Transmission

Wireless Remote Control

Wireless Remote Control unit

SPECIFICATION

HR - Hydraulic Double Pinch Bending Roll

HR-05' / 1550 mm

Specification / Model	HR-0506	HR-0508	HR-0510
Bending Length	1550 mm	1550 mm	1550 mm
Bending Capacity - Mild steel	6.5 mm	8.0 mm	10 mm
Roll diameter	205 mm	230 mm	255 mm
Motor (HP)	5 HP	7.5 HP	7.5 HP
Roll speed (m / min)	2.25	2.2	2.15
Packing Size (mm)	3920 x 1100 x 1560	3920 x 1400 x 1740	3920 x 1400 x 1750
Packing Weight (KG)	3300	4700	5000

HR-06' / 2050 mm

Specification / Model	HR-0606	HR-0608	HR-0610	HR-0613	HR-0616
Bending Length	2050 mm	2050 mm	2050 mm	2050 mm	2050 mm
Bending Capacity - Mild steel	6.5 mm	8.0 mm	10 mm	13 mm	16 mm
Roll diameter	205 mm	230 mm	255 mm	280 mm	310 mm
Motor (HP)	5 HP	7.5 HP	7.5 HP	10 HP	15 HP
Roll speed (m / min)	2.25	2.2	2.15	2.0	2.0
Packing Size (mm)	4020 x 1100 x 1600	4420 x 1300 x 1750	4420 x 1300 x 1740	4620 x 1500 x 1940	5400 x 1450 x 2230
Packing Weight (KG)	3700	4400	5750	7710	11000

HR-08' / 2550 mm

Specification / Model	HR-0805	HR-0806	HR-0808	HR-0810	HR-0813
Bending Length	2550 mm	2550 mm	2550 mm	2550 mm	2550 mm
Bending Capacity - Mild steel	5.0 mm	6.5 mm	8.0 mm	10 mm	13 mm
Roll diameter	205 mm	230 mm	255 mm	280 mm	310 mm
Motor (HP)	5 HP	7.5 HP	7.5 HP	10 HP	15 HP
Roll speed (m / min)	2.25	2.2	2.15	2.0	2.0
Packing Size (mm)	4620 x 1100 x 1620	4920 x 1400 x 1750	4920 x 1400 x 1750	5020 x 1500 x1940	5920 x 1490 x 2300
Packing Weight (KG)	4300	5600	6500	9100	12700

HR-10' / 3050 mm

Specification / Model	HR-1004	HR-1005	HR-1006	HR-1008	HR-1010
Bending Length	3050 mm	3050 mm	3050 mm	3050 mm	3050 mm
Bending Capacity - Mild steel	4.0 mm	5.0 mm	6.5 mm	8.0 mm	10 mm
Roll diameter	205 mm	230 mm	255 mm	280 mm	310 mm
Motor (HP)	5 HP	7.5 HP	7.5 HP	10 HP	15 HP
Roll speed (m / min)	2.25	2.2	2.15	2.0	2.0
Packing Size (mm)	5320 x 1150 x 1650	5420 x 1300 x 1750	5420 x 1300 x 1750	5720 x 1520 x 1970	5520 x 1600 x 2050
Packing Weight (KG)	4820	6000	7000	10200	15400

HR - Hydraulic Double Pinch Bending Roll

All 3 rolls are driven by hydraulic system
3 Rolls are driven independently
All rolls are made of top-grade alloy steel hardened upto hrc53∘±1
Rigid construction for precise & smooth operation, and long life time usage
Roll camber design for beautiful bending roll
Portable control panel with DRO and rolls adjust functions.
Planetary reduction gear & pump
Hydraulic Powered Drop-end
Emergency stop cable device

HR - Hydraulic Double Pinch Bending Roll

Infintely Variable Transmission
Cone Bending Attachment
Wireless Remote Controller
Overhead Support Device
Hydraulically Operated side support device
CE conformity machine
