R series

Manual / Power Slip Roll

SPEC
R

R

Slip Roll

PR

PR

Single Pinch Roll

HR

HR

Double-Pinch Roll

4R

4R

Double-Pinch 4-Roll

R

Manual & Power Slip Roll

Home  /  Machines  /  Rolling machines / R-series

performance

0.8 - 1.6 mm

Bending Thickness

610 - 1270 mm

Bending Length

50 - 75 mm

Roll Diameter

Features

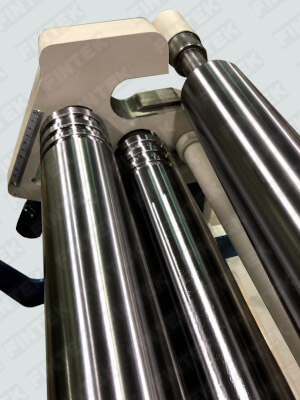

High Grade Carbon Steel Rolls

All 3 rolls made of High Grade Carbon Steel Rolls

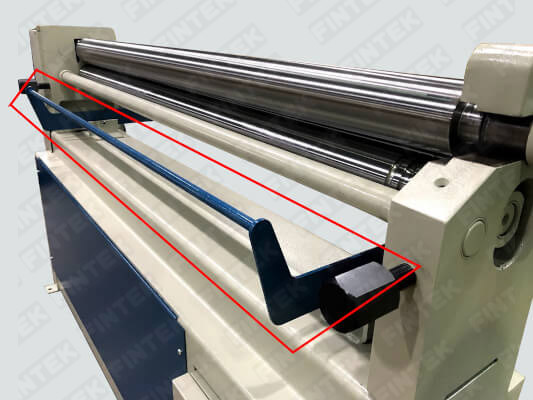

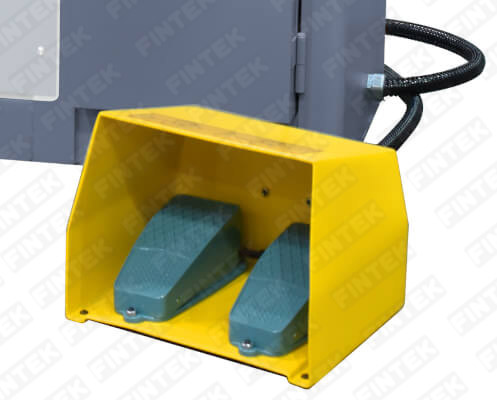

Emergency Stop Safety Device

Emergency Stop Safety Device for power model

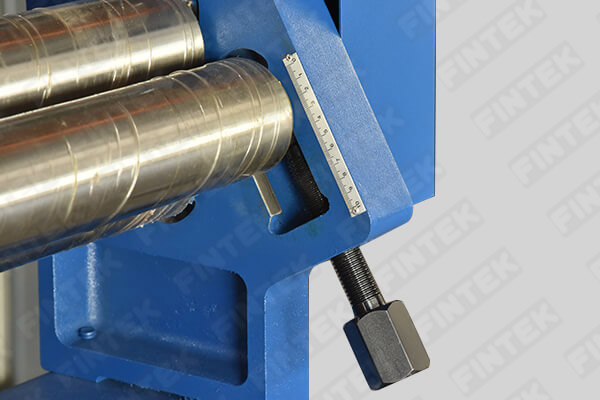

Lower Pinch Roll Adjuster

Lower Pinch Roll Adjuster

SPECIFICATION

R - Manaul Slip Roll

Specification / Model R-2420 R-3622 R-5016
Bending Length 610 mm 915 mm 1270 mm
Bending Capacity - Mild steel 1.0 mm 0.8 mm 1.6 mm
Roll diameter 50 mm 50 mm 75 mm
Wire grooves 3 3 3
Minimum Forming Radius 35 mm 35 mm 50 mm
Gear Ratio 1:1 1:1 3:1
Roll speed - - -
Motor - - -
Packing Size (mm) 1000 x 480 x 510 1350 x 480 x 510 1760 x 480 x 630
Packing Weight (KG) 50 KG 75 KG 220 KG

R-E - Power Slip Roll

Specification / Model R-2420E R-3622E R-5016E
Bending Length 610 mm 915 mm 1270 mm
Bending Capacity - Mild steel 1.0 mm 0.8 mm 1.6 mm
Roll diameter 50 mm 50 mm 75 mm
Wire grooves 3 3 3
Minimum Forming Radius 35 mm 35 mm 50 mm
Gear Ratio 1:1 1:1 3:1
Roll speed 38 rpm 38 rpm 16 rpm
Motor 0.5 HP 0.5 HP 1.0 HP
Packing Size (mm) 1030 x 580 x 1050 1350 x 580 x 1100 1850 x 510 x 1150
Packing Weight (KG) 165 KG 200 KG 300 KG

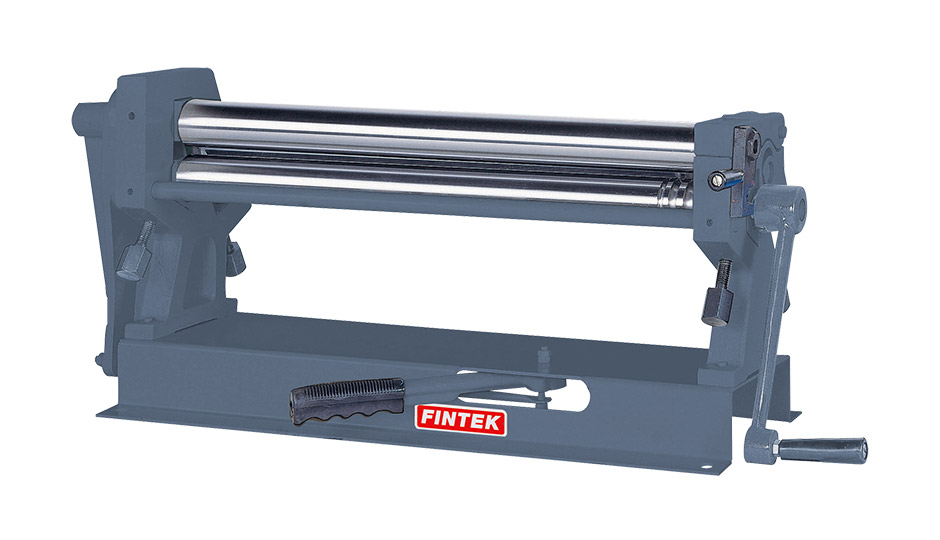

R - Slip Roll

  • All rolls are made of polished, turned and ground high grade carbon steel
  • Rigid construction for long life & precision operation
  • Front mounted handle to lift upper roll for easy workpiece removal
  • Rolls were driven by gears

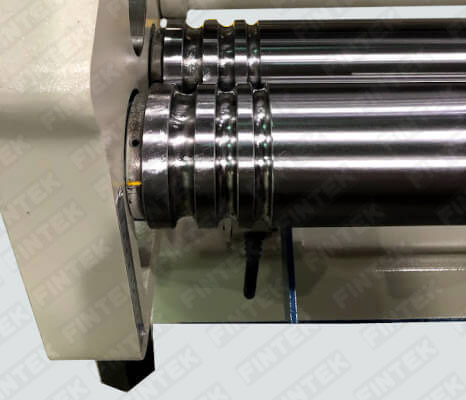

  • Wire grooves

R - Slip Roll

  • Floor Stand for Manual Slip Roll
  • Hardened of 3 Rolls( R-2420/3622 ONLY)
  • CE Conformity (R-5016E only)
  • Brake motor for R-5016E
  • 1 phase Motor
  • Cone Attachment (R-5016E only)
