H series

Hydraulic Shearing machine

SPEC bUILD
F

F

Foot shear

A

A

Air power shear

P

P

Compact shear

H

H

Hydraulic shear

H

Hydraulic Shear

Home  /  Machines  /  Shearing machines / H-series

performance

3.5 - 6.5 mm

Cutting Thickness - MS

2.2 - 4.5 mm

Cutting Thickness - SS

1320 - 3100 mm

Max Cutting Length

Features

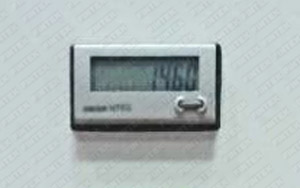

Cutting Count DRO

Cutting Count Digital Read Out

Rake angle adjustment

Hydraulic Rake Angle Adjustment

Blade Clearance Adjuster

Manually adjust blade gap for cutting different thickness sheet, for H-45/65 series only

CONTROLLERS

Sample Title

Sample Text

Sample Title

Sample Text

Sample Title

Sample Text

Standard Control cabinet

  • Cutting Count Digital Read Out
  • 600 mm Hand wheel Manual Back Gauge
  • Foot pedal controller
  • Cutting speed adjustment device
  • Rake angle adjustment device
  • Emergency stop button

Sample Title

Sample Text

Sample Title

Sample Text

Sample Title

Sample Text

M15s NC controller (Optional)

  • M15s NC controller
  • 800 mm Motorized Power Back Gauge
  • 6 Programs / 16 sets cut and back gauge value available
  • Foot pedal controller
  • Cutting speed adjustment device
  • Rake angle adjustment device
  • Emergency stop button

Sample Title

Sample Text

Sample Title

Sample Text

Sample Title

Sample Text

FATEK NC controller (Optional)

  • 7" Touch screen
  • 800 mm Motorized Power Back Gauge
  • 256 Programs / 50 sets cut and back gauge value available
  • Automatically Blade Gap adjustment
  • Foot pedal controller
  • Cutting speed adjustment device
  • Emergency stop button

OPTIONALS

CE Conformity
Machine

CE Safety sensor guard +
CE parts +
CE Certification available

Pneumatic Sheet supporter
(Air power)

Pneumatic sheet supporter for thin plate cutting

Angle gauge

Angle gauge for angle plate cutting

Extend side gauge

1250 / 1500 mm extend side gauge with support base

SPECIAL EDITION

H-series Hydraulic Shear with Front / Rear blanking system
Option for models H-0835 / H-0845 / H-1035 / H-1045

ACCESSORIES

FATEK touch screen NC controller

7" touch screen display
NC controlled 800 mm motorized back gauge
Programmable functions
Multiple languages available

Hold-down & Smooth table

Transparent hold-down for better visibility
Green cutting lamp for visibility
Heavy-duty type hold-down
Easier feed-in for small workpiece
Front feeding table with rollers

Front / Rear blanking system

Front / Rear drop modes
Supporter arm with rollers
Congregated side arm design for small pieces
Gap-filled plate under supporter arms
Synchronized with cutting operation

Front blanking system

Front drop workpieces collector
Easier & faster workpiece collecting in front
Synchronized with cutting operation

Blade clearance adjuster

Manually adjust blade gap
Adjust in accordance to cutting thickness

Motorized back gauge

800 mm motorized back gauge
Operated by NC control system
Metric / Imperial unit options available


Integrated pneumatic system

Integrated pneumatic power system




CE Conformity Machine

CE rear sensor guard
CE certificated components
CE Certification

SPECIFICATION

H - Hydraulic Shear

H-04' / 1320 mm
Specification / Model H-0435 H-0445 H-0465
Cutting Length 1320 mm 1320 mm 1320 mm
Cutting Capacity - Mild steel 3.5 mm 4.5 mm 6.5 mm
Cutting Capacity - Stainless steel 2.2 mm 3.5 mm 4.5 mm
Strokes per minute (S.P.M) 35-47 30-42 30-42
Hold-downs Number 9 9 9
Hold-downs Presssure 2.5 Tons 3.2 Tons 3.2 Tons
Side Gauge / Front Support Arm 1000 mm 1000 mm 1000 mm
Back Gauge 600 mm 600 mm 600 mm
Top Blade Rake Angle 1/2 - 2 ° 1/2 - 2 ° 1/2 - 2 °
Blade Clearance manual adjusment N/A Available Available
Motor  (HP) 7.5 HP 10 HP 15 HP
Oil tank capacity (gallons) 25 25 30
Packing Size (mm) 2250 x 1150 x 1650 mm 2250 x 1150 x 1650 mm 2250 x 1400 x 1650 mm
Packing Weight (KG) 2000 kg 2400 kg 2500 kg
H-05' / 1580 mm
Specification / Model H-0535 H-0545 H-0565
Cutting Length 1580 mm 1580 mm 1580 mm
Cutting Capacity - Mild steel 3.5 mm 4.5 mm 6.5 mm
Cutting Capacity - Stainless steel 2.2 mm 3.5 mm 4.5 mm
Strokes per minute (S.P.M) 32-44 28-40 28-40
Hold-downs Number 10 10 10
Hold-downs Presssure 3.5 tons 4.5 tons 4.5 tons
Side Gauge / Front Support Arm 1000 mm 1000 mm 1000 mm
Back Gauge 600 mm 600 mm 600 mm
Top Blade Rake Angle 1/2 - 2° 1/2 - 2° 1/2 - 2°
Blade Clearance Manual Adjustment N/A Available Available
Motor  (HP) 7.5 HP 10 HP 15 HP
Oil tank capacity (gallons) 30 30 30
Packing Size (mm) 2450 x 1150 x 1650 mm 2500 x 1300 x 1650 mm 2550 x 1450 x 1650 mm
Packing Weight (KG) 2380 kg 2600 kg 2850 kg
H-06' / 2080 mm
Specification / Model H-0635 H-0645 H-0665
Cutting Length 2080 mm 2080 mm 2080 mm
Cutting Capacity - Mild steel 3.5 mm 4.5 mm 6.5 mm
Cutting Capacity - Stainless steel 2.2 mm 3.5 mm 4.5 mm
Strokes per minute (S.P.M) 28-40 24-36 24-36
Hold-downs Number 12 12 12
Hold-downs Presssure 4.2 tons 5.6 tons 5.6 tons
Side Gauge / Front Support Arm 1000 mm 1000 mm 1000 mm
Back Gauge 600 mm 600 mm 600 mm
Top Blade Rake Angle 1/2 - 2° 1/2 - 2° 1/2 - 2°
Blade Clearance Manual Adjustment N/A Available Available
Motor  (HP) 7.5 HP 10 HP 15 HP
Oil tank capacity (gallons) 35 35 35
Packing Size (mm) 3000 x 1200 x 1650 mm 3000 x 1300 x 1650 mm 3150 x 1450 x 1650 mm
Packing Weight (KG) 2700 kg 3000 kg 3300 kg
H-08' / 2540 mm
Specification / Model H-0835 H-0845 H-0865
Cutting Length 2540 mm 2540 mm 2540 mm
Cutting Capacity - Mild steel 3.5 mm 4.5 mm 6.5 mm
Cutting Capacity - Stainless steel 2.2 mm 3.5 mm 4.5 mm
Strokes per minute (S.P.M) 26-36 22-32 18-26
Hold-downs Number 16 16 16
Hold-downs Presssure 6.7 tons 7.8 tons 12 tons
Side Gauge / Front Support Arm 1000 mm 1000 mm 1000 mm
Back Gauge 600 mm 600 mm 600 mm
Top Blade Rake Angle 1/2 - 2° 1/2 - 2° 1/2 - 2°
Blade Clearance Manual Adjustment N/A Available Available
Motor  (HP) 10 HP 15 HP 20 HP
Oil tank capacity (gallons) 40 40 40
Packing Size (mm) 3500 x 1250 x 1650 mm 3550 x 1400 x 1650 mm 3570 x 1500 x 1900 mm
Packing Weight (KG) 3480 kg 4000 kg 4600 kg
H-10' / 3100 mm
Specification / Model H-1035 H-1045 H-1065
Cutting Length 3100 mm 3100 mm 3100 mm
Cutting Capacity - Mild steel 3.5 mm 4.5 mm 6.5 mm
Cutting Capacity - Stainless steel 2.2 mm 3.5 mm 4.5 mm
Strokes per minute (S.P.M) 24-34 20-30 18-26
Hold-downs Number 18 18 18
Hold-downs Presssure 8.2 tons 9.6 tons 12 tons
Side Gauge / Front Support Arm 1000 mm 1000 mm 1000 mm
Back Gauge 600 mm 600 mm 600 mm
Top Blade Rake Angle 1/2 - 2° 1/2 - 2° 1/2 - 2°
Blade Clearance Manual Adjustment N/A Available Available
Motor  (HP) 10 HP 15 HP 20 HP
Oil tank capacity (gallons) 40 40 40
Packing Size (mm) 4100 x 1250 x 1650 mm 4200 x 1400 x 1650 mm 4220 x 1820 x 1900 mm
Packing Weight (KG) 3850 kg 4700 kg 5700 kg

H - Hydraulic Shear

  • High grade,high carbon / chrome 2-edge upper blade and 4-edge bottom blade.
  • Blade clearance(Gap) adjustor device
  • Hydraulic rake angle adjustment
  • Front supporting arm with front setter

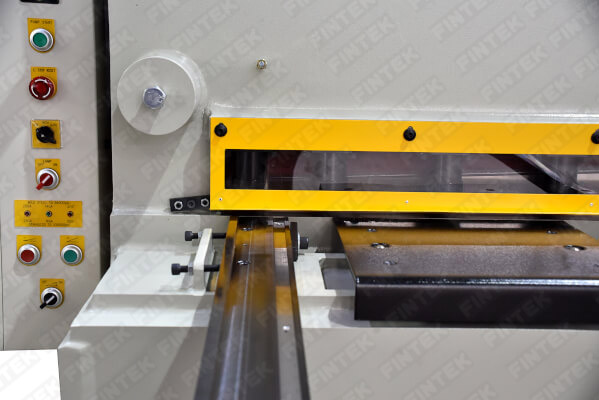

  • Side gauge with dual scale

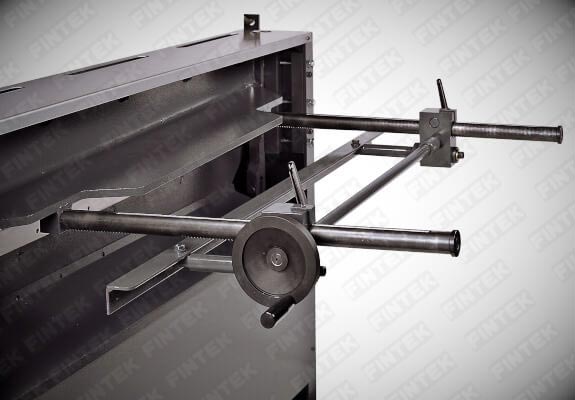

  • 600 mm manual back gauge with dual scale
  • Front feeding table with Rollers
  • Full length finger guard

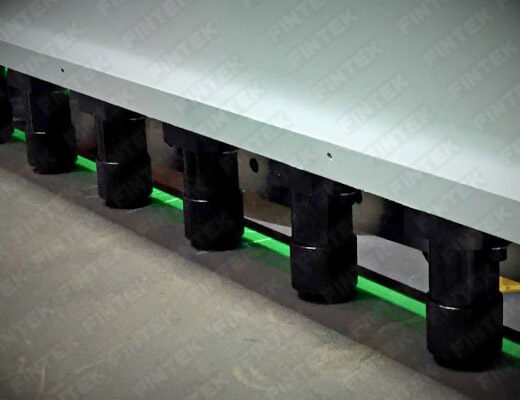

  • Hydraulic independent Hold-downs
  • Overload protected Hydraulic system
  • Foot pedal with safety protection
  • Full electrics & cabinet with operation panel

H - Hydraulic Shear

  • M15s NC controller with power back gauge
  • Schneider NC controller with power back gauge & blade gap clearance
  • CE Conformity
  • Angle gauge
  • Update to bigger motor to increased strokes
  • Hydraulic Sheet supporter
  • Back gauge with lifting function
  • Extended front supporting arm, length 1.5/2.0/3.0 meters
  • Extended side gauge, length 1.5/2.0/3.0 meters
  • 800 mm Motorized NC power back gauge
