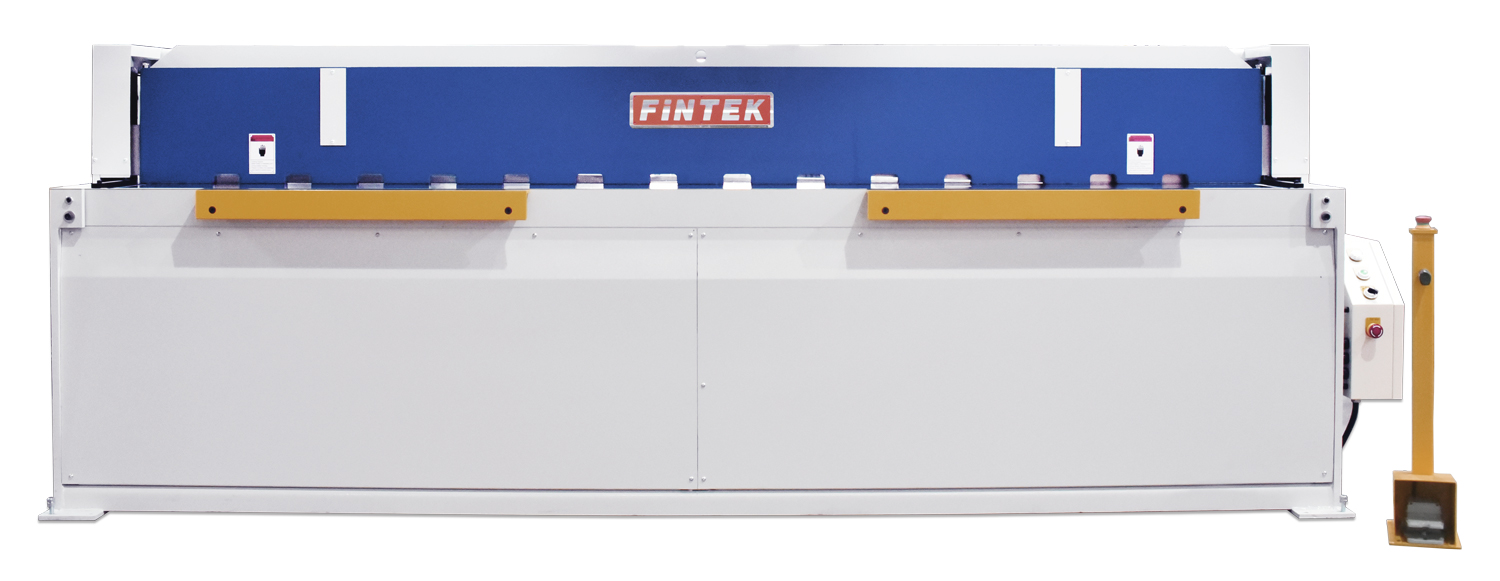

Compact Hydraulic Shear

Home  /  Machines  /  Shearing machines / P-series

performance

2.0 - 3.5 mm

Cutting Thickness - MS

1.2 - 2.3 mm

Cutting Thickness - SS

1320 - 3100 mm

Max Cutting Length

Features

Side Gauge

Standard 600 mm side gauge

Front Finger Guard

Prevent the user put the finger into shearing machine

Hydraulic hold-down

Hydraulic hold-down system for P-12010 & P-10010 only, to clamp workpiece tightly

OPTIONALS

M15s / FATEK
NC controller

Programmable function with

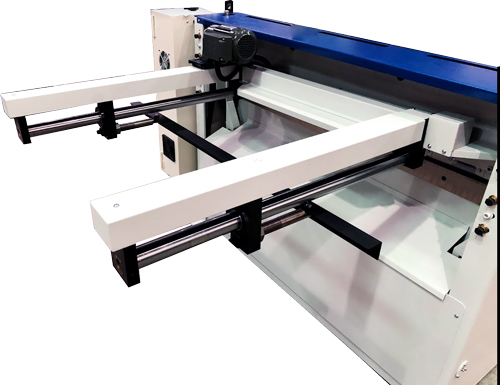

800 mm Motorzied back gauge

Motorized back gauge

800 mm motorized back gauge with M15s NC controller

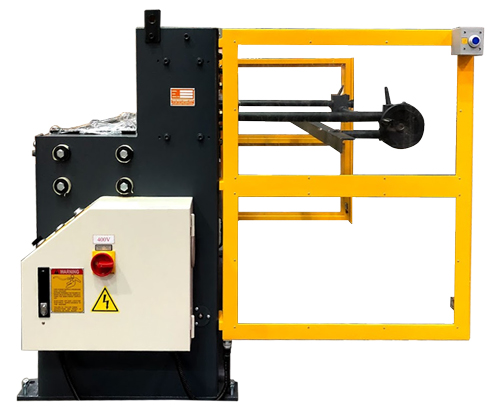

CE Conformity
Machine

CE Safety sensor guard +
CE parts +
CE Certification available

Pneumatic Sheet supporter
(Air power)

Pneumatic sheet supporter for thin plate cutting

Angle gauge

Angle gauge for angle plate cutting

Extend side gauge

1000 / 1250 / 1500 mm extend side gauge with support base

SPECIFICATION

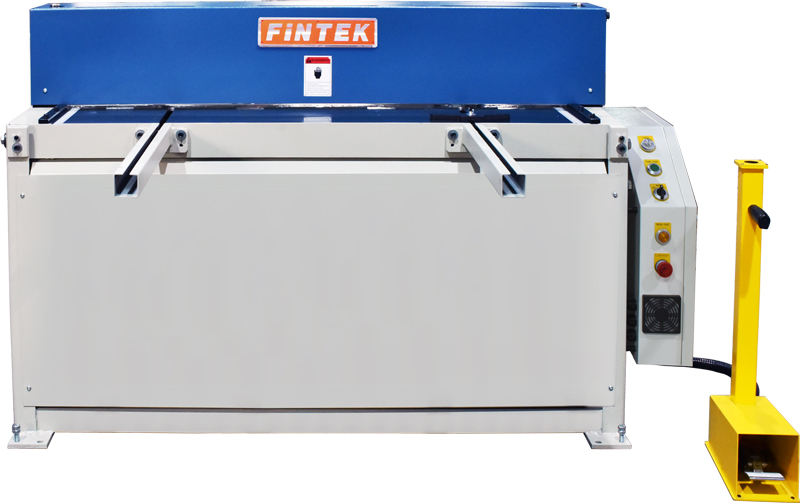

P - Compact Hydraulic Shear

P-52" / 1320 mm
Specification / Model P-5214 P-5210
Cutting Length 1320 mm 1320 mm
Cutting Capacity - Mild steel 2.0 mm 3.5 mm
Cutting Capacity - Stainless steel 1.2 mm 2.3 mm
Strokes per minute (S.P.M) 35 28
Front Support Arm 600 mm 600 mm
Manual Back Gauge 600 mm 600 mm
Motor  (HP) 3 HP 5 HP
Cutting Angle 1°40’ 1°40’
Packing Size (mm) 1920 x 850 x 1360 mm 1920 x 900 x 1450 mm
Packing Weight (KG) 780 kg 1200 kg
P-60" / 1550 mm
Specification / Model P-6014 P-6010
Cutting Length 1550 mm 1550 mm
Cutting Capacity - Mild steel 2.0 mm 3.5 mm
Cutting Capacity - Stainless steel 1.2 mm 2.3 mm
Strokes per minute (S.P.M) 30 26
Front Support Arm 600 mm 600 mm
Manual Back Gauge 600 mm 600 mm
Motor  (HP) 3 HP 5 HP
Cutting Angle 1°40’ 1°40’
Packing Size (mm) 2160 x 900 x 1350 mm 2160 x 900 x 1450 mm
Packing Weight (KG) 1000 kg 1390 kg
P-80" / 2050 mm
Specification / Model P-8014 P-8010
Cutting Length 2050 mm 2050 mm
Cutting Capacity - Mild steel 2.0 mm 3.5 mm
Cutting Capacity - Stainless steel 1.2 mm 2.3 mm
Strokes per minute (S.P.M) 26 24
Front Support Arm 600 mm 600 mm
Manual Back Gauge 600 mm 600 mm
Motor  (HP) 3 HP 5 HP
Cutting Angle 1°40’ 1°40’
Packing Size (mm) 2700 x 950 x 1400 mm 2700 x 950 x 1450 mm
Packing Weight (KG) 1170 kg 1730 kg
P-100" / 2540 mm
Specification / Model P-10014 P-10010
Cutting Length 2540 mm 2540 mm
Cutting Capacity - Mild steel 2.0 mm 3.5 mm
Cutting Capacity - Stainless steel 1.2 mm 2.3 mm
Strokes per minute (S.P.M) 22 22
Front Support Arm 600 mm 600 mm
Manual Back Gauge 600 mm 600 mm
Motor  (HP) 5 HP 7.5 HP
Cutting Angle 2° 2°
Packing Size (mm) 3150 x 1000 x 1500 mm 3270 x 1100 x 1500 mm
Packing Weight (KG) 2230 kg 2700 kg
P-120" / 3100 mm
Specification / Model P-12014 P-12010
Cutting Length 3100 mm 3100 mm
Cutting Capacity - Mild steel 2.0 mm 3.5 mm
Cutting Capacity - Stainless steel 1.2 mm 2.3 mm
Strokes per minute (S.P.M) 20 20
Front Support Arm 600 mm 600 mm
Manual Back Gauge 600 mm 600 mm
Motor  (HP) 5 HP 7.5 HP
Cutting Angle 2° 2°
Packing Size (mm) 3820 x 1100 x 1500 mm 3820 x 1100 x 1500 mm
Packing Weight (KG) 2800 kg 3200 kg

P - Compact Hydraulic Shear

  • High carbon, high chrome alloy-tool steel blades
  • Front finger guard
  • 600mm manual back gauge
  • 600mm Front supporting arm
  • Side gauge on worktable
  • Spring actuated hold-downs ensure even pressure
  • Hydraulic hold-down system for P-12010 & P-10010
  • Fully hydraulic system and safety overload protection system

P - Compact Hydraulic Shear

  • CE conformity
  • Angle gauge
  • 800mm NC power back gauge with M15s NC Controller
  • Pneumatic sheet supporter
  • 1000 / 1250 / 1500 mm extend side gauge with support base
