L - series

Lock Forming Machine

SPEC

L

Lock Forming Machine

Home  /  Machines  /  Sheet metal machines / L-series

Features

Rolls Pittsburgh
Lock 		Double Seam Rolls Drive Cleat
Rolls 		Flange
Attachment 		Right Angle
Rolls
Capacity 20-26 GA 20 - 26 GA 20 - 26 GA 20 - 26 GA 20 - 26 GA
Approx. Material Used 5/16" 1" 2-1/8" up to 3/16" up to 3/8"
Size 5/16" 3/8"
Seam 		1-1/8"
Width 		Up to 3/16"
Height 		Up to 3/8"
Height

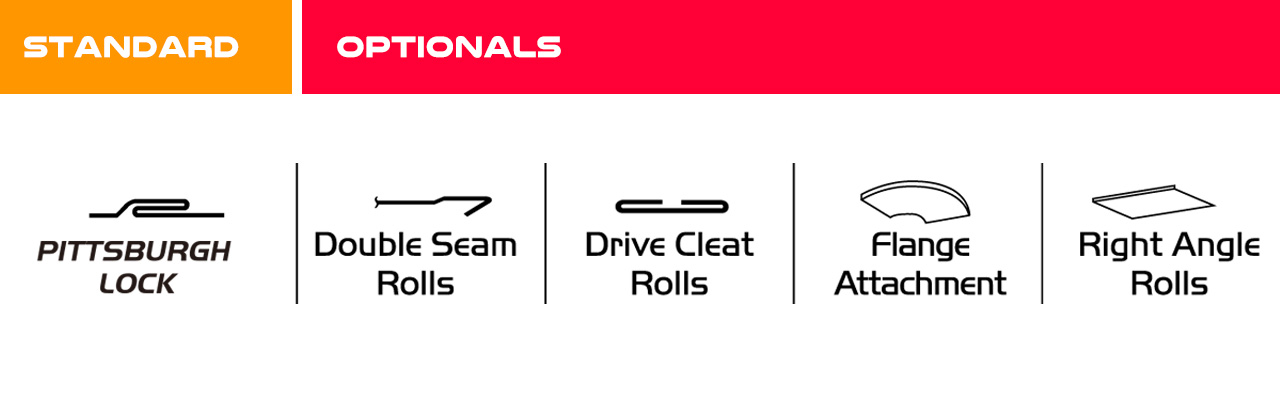

Bending Roll Molds

- Pittsburgh Lock (Standard)
- Double Seam Rolls (Opt.)
- Drive Cleat Rolls (Opt.)
- Flange attachment (Opt.)
- Right Angle Rolls (Opt.)

Rolls Pittsburgh
Lock 		Double Seam Rolls Drive Cleat
Rolls 		Flange
Attachment 		Right Angle
Rolls
Capacity 20-26 GA 20 - 26 GA 20 - 26 GA 20 - 26 GA 20 - 26 GA
Approx. Material Used 5/16" 1" 2-1/8" up to 3/16" up to 3/8"
Size 5/16" 3/8"
Seam 		1-1/8"
Width 		Up to 3/16"
Height 		Up to 3/8"
Height

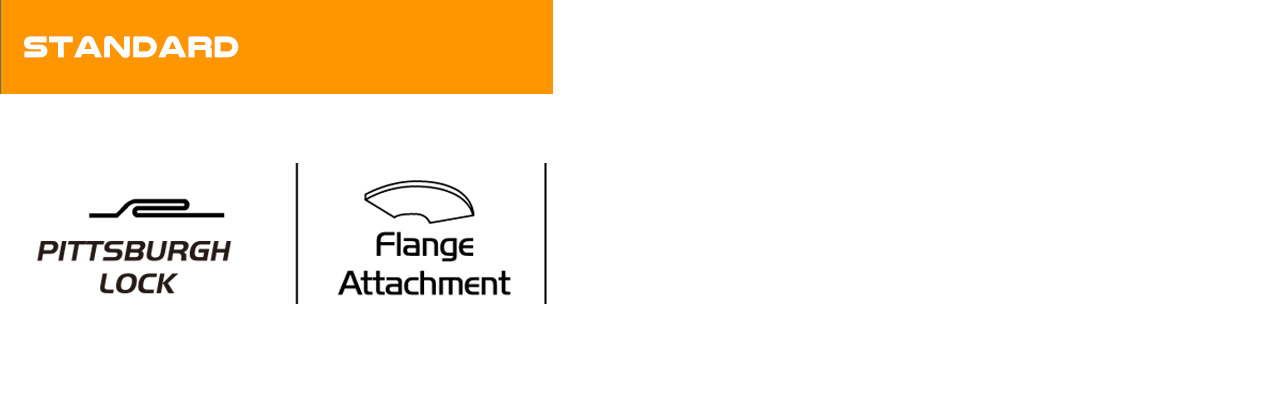

Bending Roll Molds

- Pittsburgh Lock (Standard)
- Flange attachment (Standard.)

OPTIONALS

CE conformity machine

CE conformity machine

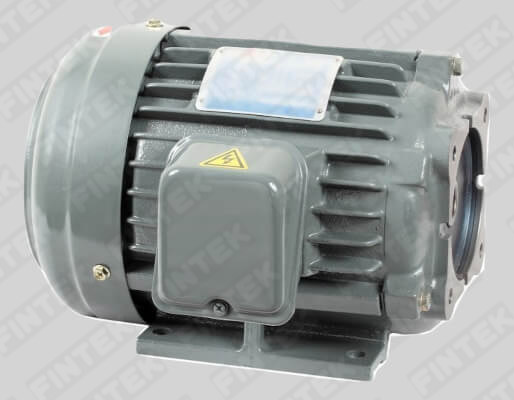

Single Phase Motor

Single Phase Motor

SPECIFICATION

L-Lock Forming Machine

Specification / Model L-20 L-24
Capacity 20 GA and lighter 24 GA and lighter
Depth of Pocket adjustable up to 3/8' (9.5mm) 5/16' Width of hammer-over edge
Working Speed 25 feet per minute. 30 feet per minute
Motor 1 HP 1/2 HP
Drive V-belt V-belt
Stand ARC welded steel. Heavy top plate ARC welded steel. Heavy top plate
Dimmensions (mm) 1080 x 550 x 1150 1000 x 600 x 730
Shipping Weight (kg) 160 100

L-20 Lock Forming Machine

  • All steel forming head
  • Hardened & ground shafts
  • Case hardened steel forming rolls
  • Machine cut gear and needle type roller bearing throughout
  • Pittsburgh Lock

L-20 Lock Forming Machine

  • Flange Attachment
  • Double Seam Rolls
  • Drive Cleat Rolls
  • Right Angle Rolls
  • Single Phase Motor
