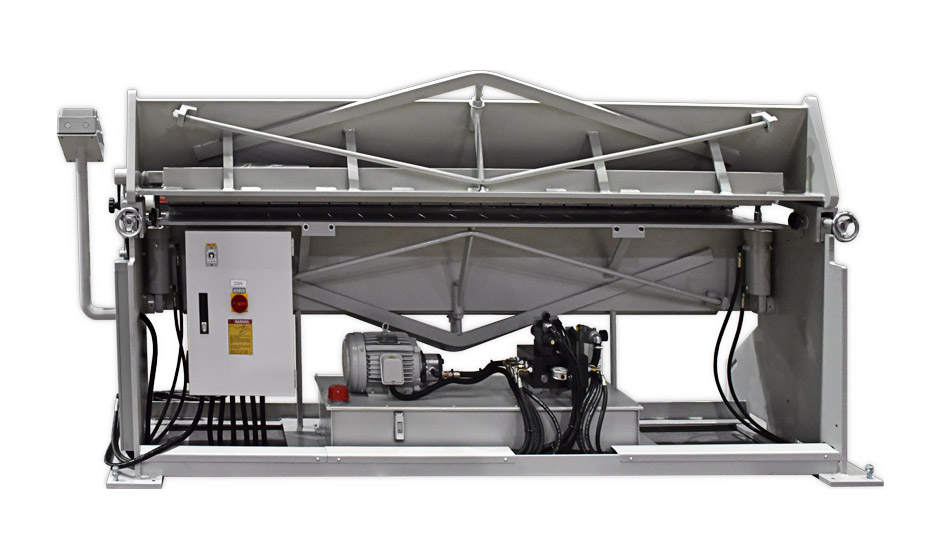

VH-AU series

Hydraulic Box & Pan Brake with High Tools Segmented

Get the VH-AU catalog

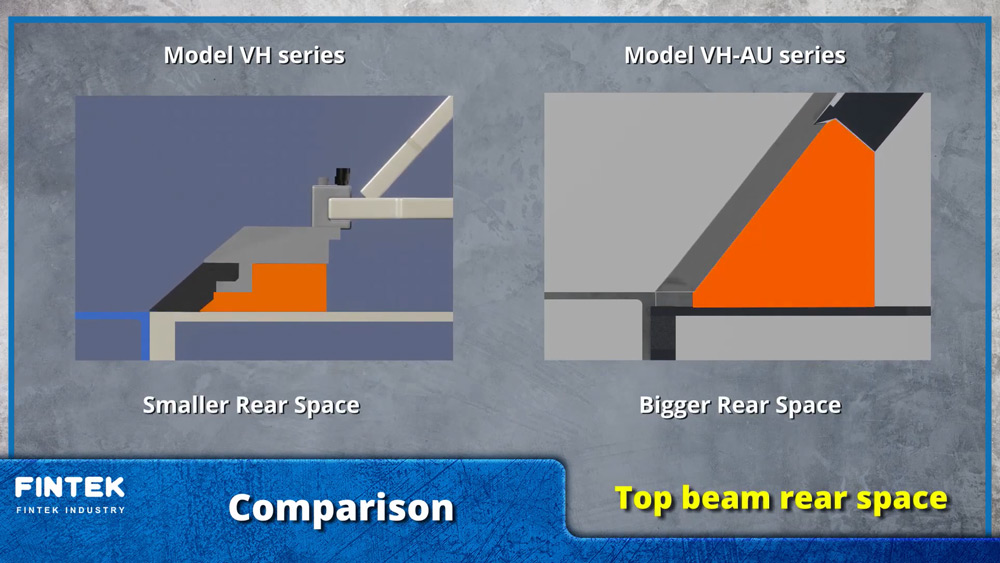

Higher Tools & Bigger Space
for Various workpiece

VHAU by fintekwell on Sketchfab

performance

1.0 - 3.5 mm

Bending Thickness

1220 - 4000 mm

Bending Length

0-135°

Bending Degree

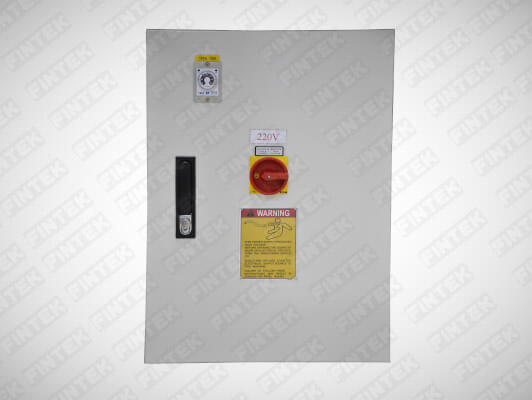

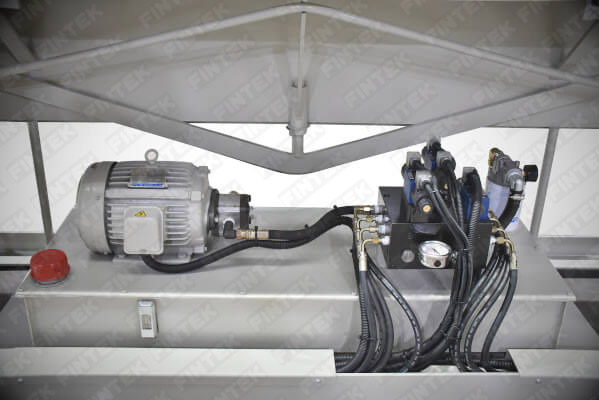

Features

Beam Crowning Compensation

Top Beam and Bottom Beam crowning compensation by screws

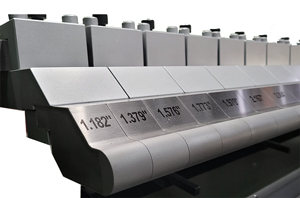

Segmented / Straight Type Clamping Tools

High-grade alloy steel blades

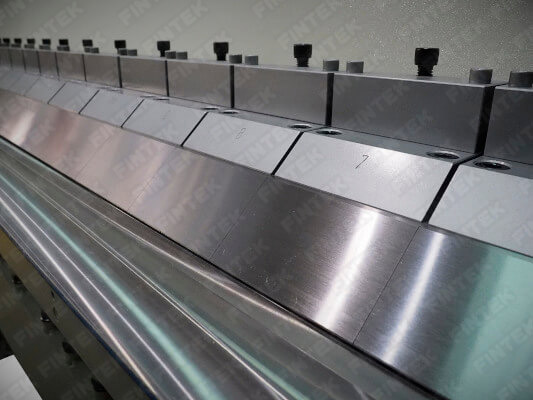

Multiple finger size (seg tool)
For box & pan bending (seg tool)
Easy replacement design (seg tool)
One piece tool (straight tool)

Angle Bar

Angle bar Two-position movable design (For reverse bending)

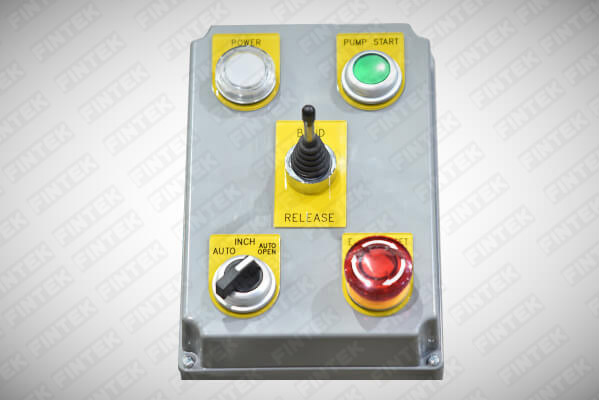

Controllers

M15s single-axis NC controller - Optional

  • Entity button with Digital display
  • NC controller functions choose one as below:
  • 1-axis NC control system - Angle setting
  • 1-axis NC contorl system - 800 mm Power back gauge
  • Programmable functions - 6 programs settable, 16 bending steps each.

FATEK 1-axis NC controller - Optional

  • 7" Touch screen display
  • Manual / Auto / Program functions
  • 1-axis NC control system - Angle setting
  • Programmable functions - 50 programs settable, 45 bending steps each.
  • FINTEK Special designed Graphical interface, easier learning and operation
  • Mutiple languages available

FATEK 2-axis NC controller - Optional

  • 7" Touch screen display
  • Manual / Auto / Program functions
  • 2-axis NC control system - Angle setting + motorized back gauge setting
  • 800 / 1000 / 1250 mm motorized power back gauge available
  • Programmable functions - 50 programs settable, 45 bending steps each.
  • FINTEK Special designed Graphical interface, easier learning and operation
  • Mutiple languages available

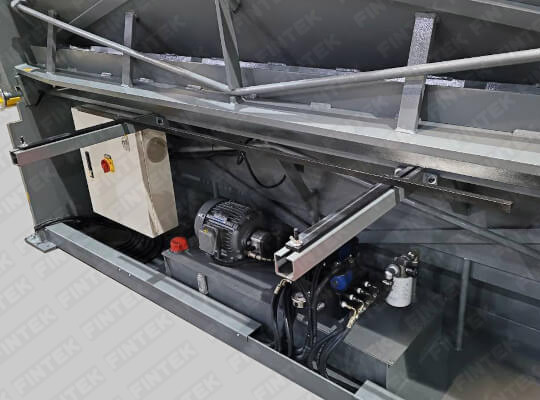

OPTIONALS

800/1250 mm
Motorized Back Gauge

Motorized NC back gauge
with support table
Contorl by NC controller

Metric spec tools /
Special design tools

Metric specification tools and Customize design bending tools

CE Conformity
Machine

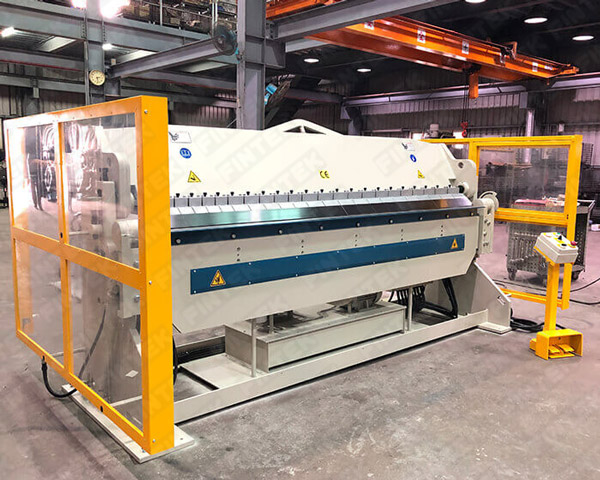

CE Safety sensor guard +
CE parts +
CE Certification available

SPECIFICATION

VH - Hydraulic Straight Brake

VH-04' / 1220 mm
Specification / Model VH-412 VH-410
Bending Length 1220 mm 1220 mm
Bending Capacity - Mild steel 2.5 mm 3.5 mm
Bending Capacity - Stainless steel 1.6 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm
Min Reverse Bend 16 mm 25 mm
Motor  (HP) 2 HP 3 HP
Packing Size (mm) 2100 X 1160 X 1570 2200 X 1300 X 1680
Packing Weight (KG) 900 KG 1700 KG
VH-06' / 1830 mm
Specification / Model VH-612 VH-610
Bending Length 1830 mm 1830 mm
Bending Capacity - Mild steel 2.5 mm 3.5 mm
Bending Capacity - Stainless steel 1.6 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm
Min Reverse Bend 16 mm 25 mm
Motor  (HP) 3 HP 5 HP
Packing Size (mm) 2700 X 1050 X 1680 2800 X 1100 X 1750
Packing Weight (KG) 1200 KG 2200 KG
VH-08' / 2440 mm
Specification / Model VH-812 VH-810
Bending Length 2440 mm 2540 mm
Bending Capacity - Mild steel 2.5 mm 3.5 mm
Bending Capacity - Stainless steel 1.6 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm
Min Reverse Bend 16 mm 25 mm
Motor  (HP) 3 HP 5 HP
Packing Size (mm) 3350 X 1050 X 1680 3500 X 1100 X 1750
Packing Weight (KG) 1500 KG 2800 KG
VH-10' / 3050 mm
Specification / Model VH-1014 VH-1010
Bending Length 3050 mm 3050 mm
Bending Capacity - Mild steel 2.0 mm 3.5 mm
Bending Capacity - Stainless steel 1.2 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm
Min Reverse Bend 16 mm 25 mm
Motor  (HP) 3 HP 5 HP
Packing Size (mm) 3900 X 1050 X 1660 4000 X 1100 X 1750
Packing Weight (KG) 2000 KG 3150 KG
VH-12' / 3700 mm
Specification / Model VH-1216 VH-1214 VH-1210
Bending Length 3710 mm 3710 mm 3710 mm
Bending Capacity - Mild steel 1.6 mm 2.0 mm 3.5 mm
Bending Capacity - Stainless steel 0.8 mm 1.2 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm 25 mm
Min Reverse Bend 16 mm 16 mm 25 mm
Motor  (HP) 3 HP 5 HP 5 HP
Packing Size (mm) 4600 X 1160 X 1700 4600 X 1160 X 1700 4600 X 1160 X 1700
Packing Weight (KG) 2600 KG 2800 KG 3700 KG
VH-40 / 4000 mm
Specification / Model VH-4020 VH-4016 VH-4014
Bending Length 4010 mm 4010 mm 4010 mm
Bending Capacity - Mild steel 1.0 mm 1.6 mm 2.0 mm
Bending Capacity - Stainless steel 0.6 mm 0.8 mm 1.2 mm
Bending Angle 0 - 135° 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm 25 mm
Min Reverse Bend 16 mm 16 mm 16 mm
Motor  (HP) 3 HP 3 HP 5 HP
Packing Size (mm) 5050 X 1100 X 1750 5050 X 1100 X 1750 5050 X 1100 X 1750
Packing Weight (KG) 3700 KG 3900 KG 4200 KG

VH-6 - Hydraulic Box & Pan Brake

VH-04' / 1220 mm
Specification / Model VH-412-6 VH-410-6
Bending Length 1220 / 1270 mm 1220 / 1270 mm
Bending Capacity - Mild steel 2.5 mm 3.5 mm
Bending Capacity - Stainless steel 1.6 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm
Min Reverse Bend 16 mm 25 mm
Motor  (HP) 2 HP 3 HP
Packing Size (mm) 2100 X 1160 X 1570 2200 X 1300 X 1680
Packing Weight (KG) 1000 1850
VH-06' / 1830 mm
Specification / Model VH-612-6 VH-610-6
Bending Length 1830 / 2040 mm 1830 / 2040 mm
Bending Capacity - Mild steel 2.5 mm 3.5 mm
Bending Capacity - Stainless steel 1.6 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm
Min Reverse Bend 16 mm 25 mm
Motor  (HP) 3 HP 5 HP
Packing Size (mm) 2700 X 1050 X 1680 2800 X 1100 X 1750
Packing Weight (KG) 1400 2400
VH-08' / 2440 mm
Specification / Model VH-812-6 VH-810-6
Bending Length 2440 / 2540 mm 2540 mm
Bending Capacity - Mild steel 2.5 mm 3.5 mm
Bending Capacity - Stainless steel 1.6 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm
Min Reverse Bend 16 mm 25 mm
Motor  (HP) 3 HP 5 HP
Packing Size (mm) 3350 X 1050 X 1680 3500 X 1100 X 1750
Packing Weight (KG) 1700 3000
VH-10' / 3050 mm
Specification / Model VH-1014-6 VH-1010-6
Bending Length 3050 mm 3050 mm
Bending Capacity - Mild steel 2.0 mm 3.5 mm
Bending Capacity - Stainless steel 1.2 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm
Min Reverse Bend 16 mm 25 mm
Motor  (HP) 3 HP 5 HP
Packing Size (mm) 3900 X 1050 X 1660 4000 X 1100 X 1750
Packing Weight (KG) 2250 2480
VH-12' / 3700 mm
Specification / Model VH-1216 VH-1214 VH-1210
Bending Length 3700 mm 3700 mm 3700 mm
Bending Capacity - Mild steel 1.6 mm 2.0 mm 3.5 mm
Bending Capacity - Stainless steel 0.8 mm 1.2 mm 2.5 mm
Bending Angle 0 - 135° 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm 25 mm
Min Reverse Bend 16 mm 16 mm 25 mm
Motor  (HP) 3 HP 5 HP 5 HP
Packing Size (mm) 4600 X 1160 X 1700 4600 X 1160 X 1700 4600 X 1160 X 1700
Packing Weight (KG) 2800 3700 4000
VH-40 / 4000 mm
Specification / Model VH-4020 VH-4016 VH-4014
Bending Length 4000 mm 4000 mm 4000 mm
Bending Capacity - Mild steel 1.0 mm 1.6 mm 2.0 mm
Bending Capacity - Stainless steel 0.6 mm 0.8 mm 1.2 mm
Bending Angle 0 - 135° 0 - 135° 0 - 135°
Beam adjustment 25 mm 25 mm 25 mm
Min Reverse Bend 16 mm 16 mm 16 mm
Motor  (HP) 3 HP 3 HP 5 HP
Packing Size (mm) 5050 X 1100 X 1750 5050 X 1100 X 1750 5050 X 1100 X 1750
Packing Weight (KG) 4000 4200 4500

VH-AU - Hydraulic High Segmented Tools Brake

VH-06' / 2050 mm
Specification / Model VH-610-AU
Bending Length 2050 mm
Bending Capacity - Mild steel 3.5 mm
Bending Capacity - Stainless steel 2.0 mm
Bending Angle 0 - 135°
Max open height of top beam 80 mm
Beam adjustment 25 mm
Min Reverse Bend 25 mm
Motor  (HP) 5 HP
Packing Size (mm) 2870 x 1470 x 1750
Packing Weight (KG) 2470
VH-08' / 2550 mm
Specification / Model VH-810-AU
Bending Length 2550 mm
Bending Capacity - Mild steel 3.5 mm
Bending Capacity - Stainless steel 2.0 mm
Bending Angle 0 - 135°
Max open height of top beam 80 mm
Beam adjustment 25 mm
Min Reverse Bend 25 mm
Motor  (HP) 5 HP
Packing Size (mm) 3570 x 1470 x 1750
Packing Weight (KG) 3070
VH-10' / 3050 mm
Specification / Model VH-1010-AU
Bending Length 3050 mm
Bending Capacity - Mild steel 3.5 mm
Bending Capacity - Stainless steel 2.0 mm
Bending Angle 0 - 135°
Max open height of top beam 80 mm
Beam adjustment 25 mm
Min Reverse Bend 25 mm
Motor  (HP) 5 HP
Packing Size (mm) 4170 x 1470 x 1750
Packing Weight (KG) 3665

VH - Straight Brake

  • Straight Type Top Clamping Tool
  • Rigid machine base design for all models
  • Adjustable table crowning mechanism, for 3.5mm thickness (10GA) models

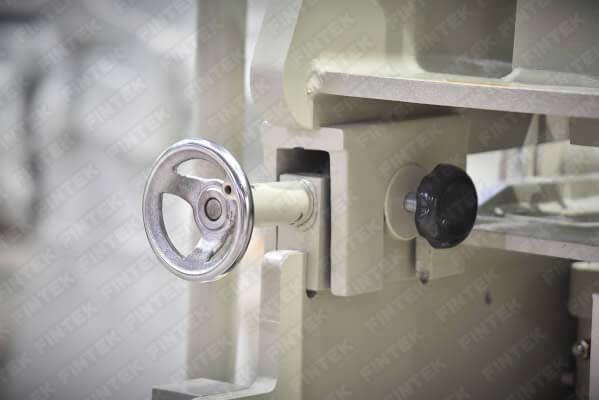

  • Bending angle adjustable mechanism, angle range from​ 0-135
  • Three functions foot pedal

VH-6 - Box & Pan Brake

  • Segmented Type Top Clamping Tool
  • Rigid machine base design for all models
  • Adjustable table crowning mechanism, for 3.5mm thickness (10GA) models
  • Bending angle adjus​table mechanism, angle range from​ 0-135
  • Three functions foot pedal

VH - Straight Brake

  • 800 mm / 1250mm NC Back Gauge with M15s NC controller
  • ELGO 2 axes NC controller included with Power back gauge & Angle setting
  • CE Conformity
  • Metric specification machine on request

VH-6 - Box & Pan Brake

  • 800 mm / 1250mm NC Back Gauge with M15s NC controller
  • ELGO 2 axes NC controller included with Power back gauge & Angle setting
  • CE Conformity
  • Metric specification machine on request
  • Customize Segmented Top Clamping Tools
